Product PKG4S-0.6-PSG4S/TEL
Actuator and Sensor Cable, PVC
Extension Cable

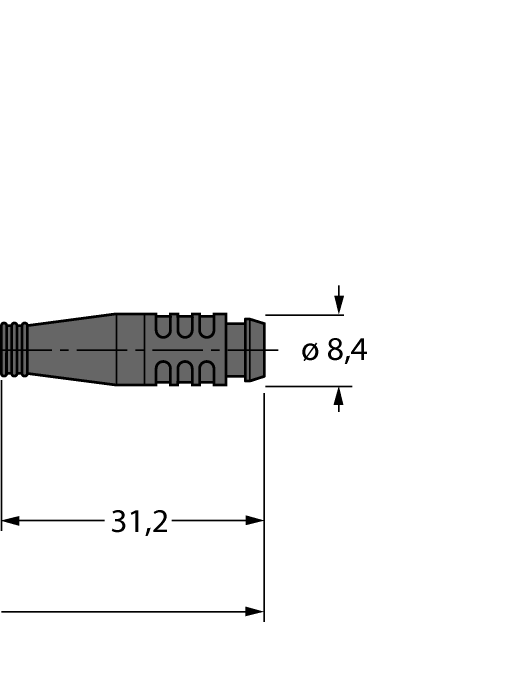

Order number: 6627395- Female Ø 8 mm, straight, 4-pin, snap-on type
- Male Ø 8 mm, straight, 4-pin, snap-on type
- Sheath material: PVC
- Sheath color: black
- Resistant to chemicals and oils
- Flame retardant
- Resistant to acids and alkaline solutions
- Resistant to microbes and hydrolysis
- LABS free
- RoHS conform
- Protection class IP67
- Cable length: 0.6 m
General data
| EAN | 4047101284652 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | CN |
| Weight | 28 g |
Technical Data
| Application | Signal |
| Connector A | Female, Ø 8 mm, Straight |
| Number of pins | 4 |
| Housing material | Plastic, TPU |
| Current | 4 A |
| Approvals | cULus |
