Product RKC4.4T-2-RSC4.4T/TXY
Actuator and Sensor Cable, PUR
Extension Cable
Order number: 6627695- Female M12, straight, 4-pin
- Male M12, straight, 4-pin
- Jacket material: PUR
- Jacket color: yellow
- Suitable for drag chain use
- Resistant to chemicals, UV radiation and oils
- Flame retardant (FT2 acc. to UL 1581, IEC 60332-2-2)
- Resistant to welding sparks
- Free from halogen, silicone, PVC and LABS
- Particularly resistant to abrasion
- Protection class: IP67, IP69K
- Cable length: 2.0 m
General data
| EAN | 4047101301465 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | PL |
| Weight | 89 g |
Technical Data
| Cable length | 2.0 m |
| Ambient temperature | -25…+80 °C |
Functional accessories
|
M18SP6DL
Photoelectric sensor, series M18, sensing mode: diffuse mode sensor, 300 mm sensing range, threaded barrel M18 x 1 with 2 m cable, 10…30 VDC supply voltage, pnp output |
3048666 |
|
WKC4.4T-P7X3.1-7-RSC4.4T/TXO | 6627121 |
|

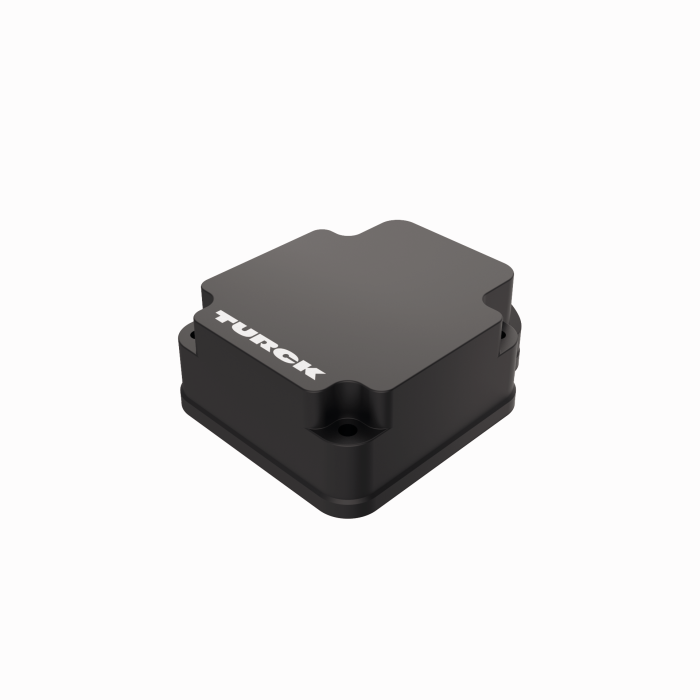

WIM100-Q25L-LI-EXI-H1141
Cuboid-shaped, aluminium / plastic |
1536642 |
|

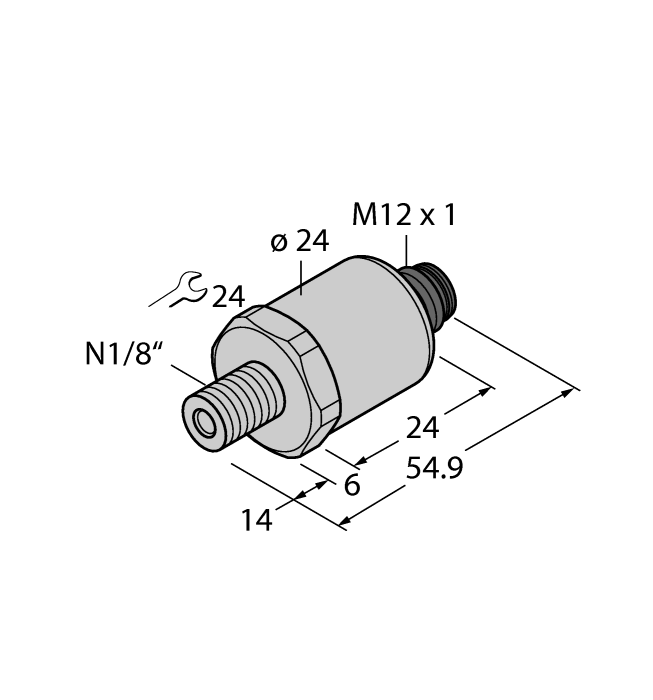

PT6A-1014-U6-H1143 | 100016695 |
|
TNSLR-Q80WD-H1147 | 7030418 |
