Product SLPMP14-1110P128
Safety Light Curtain
Emitter/Receiver Pair
Integrated Muting Function
Order number: 3084480Alternative order number : 84480
- Cable with male end M12 x 1, 8-pin, 300 mm
- Protection class IP65
- Flat housing without blind zone
- Adjustments via DIP switch
- Resolution can be reduced
- Blanking function
- Operating voltage: 24 VDC ± 15 %
- Resolution 14 mm
- Scan field 1110 mm (L1)
- Mounting bracket included in delivery
General data
| EAN | 662488844806 |
| eCl@ss-Code (V5.1.4): | 27270910 -/- Light grid |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 2536 g |
Technical Data
| Electrical connection | Cable with connector |
| Protection class | IP65 |
Mounting accessories
|

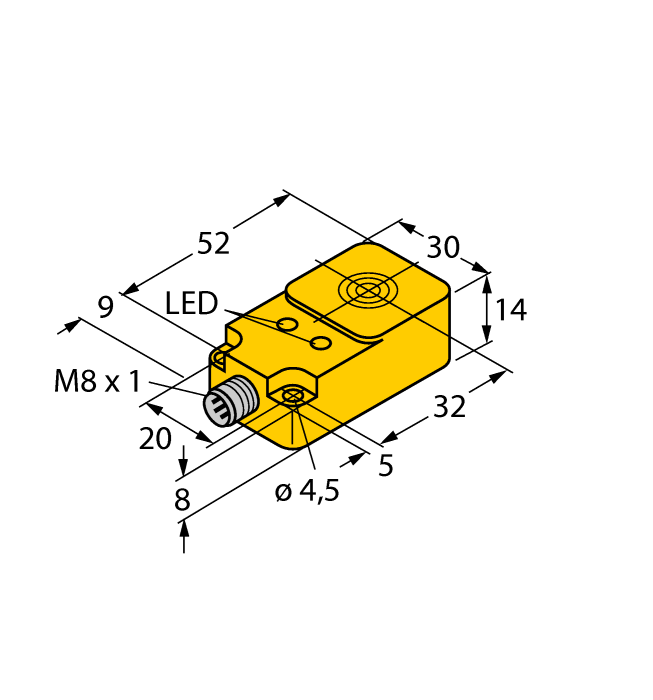

BI10U-Q14-AN6X2-V1131
Rectangular, plastic |
1608510 |
|

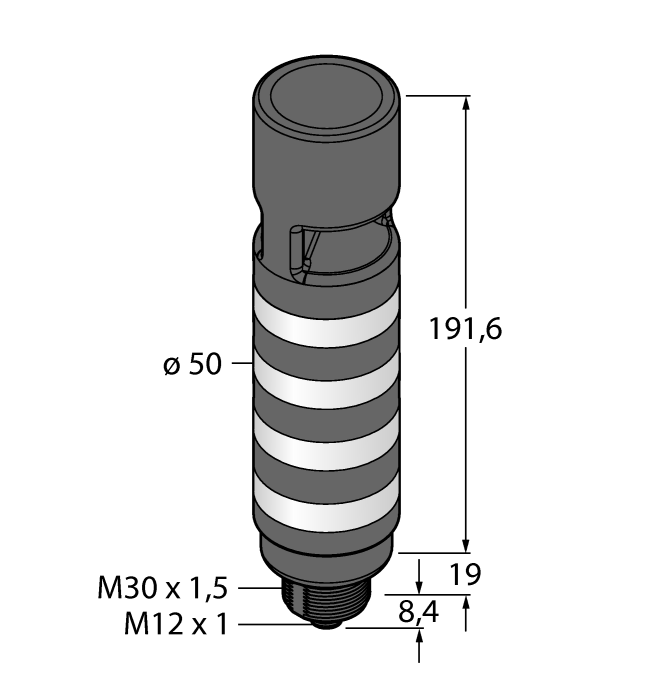

TL50BLBGYR1AOSQ | 3088572 |
