Product RKC4.4T-25-RSC4.4T/TXG
Actuator and Sensor Cable, PUR
Extension Cable
Order number: 6636172- Female M12, straight, 4-pin
- Male M12, straight, 4-pin
- Jacket material: PUR
- Jacket color: gray
- Suitable for drag chain use
- Resistant to chemicals, UV radiation and oils
- Flame retardant (FT2 acc. to UL 1581, IEC 60332-2-2)
- Resistant to welding sparks
- Free from halogen, silicone, PVC and LABS
- Particularly resistant to abrasion
- Protection class: IP67, IP69K
- Cable length: 25 m
General data
| EAN | 4047101634853 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | PL |
| Weight | 1 g |
Technical Data
| Ambient temperature | -25…+80 °C |
| Approvals | cULus |
Mounting accessories
|
T30RW3FF200Q1 | 3033432 |
Functional accessories
|
PS001D-502T-2UPN8X-H1141 | 6834112 |
Connectivity accessories — I/O
|

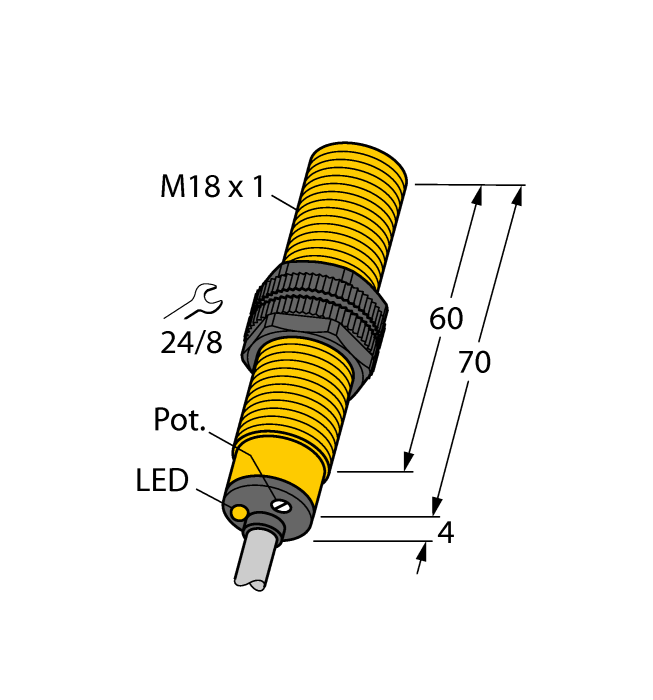

BC5-S18-AP4X
Cylindrical, threaded barrel, 18 mm, plastic |
25030 |
|
SLPCR25-690P8 | 3083623 |
|
PT600R-2008-I2-DA91/X | 6836660 |
|
PS001V-505-2UPN8X-H1141 | 6832694 |
|

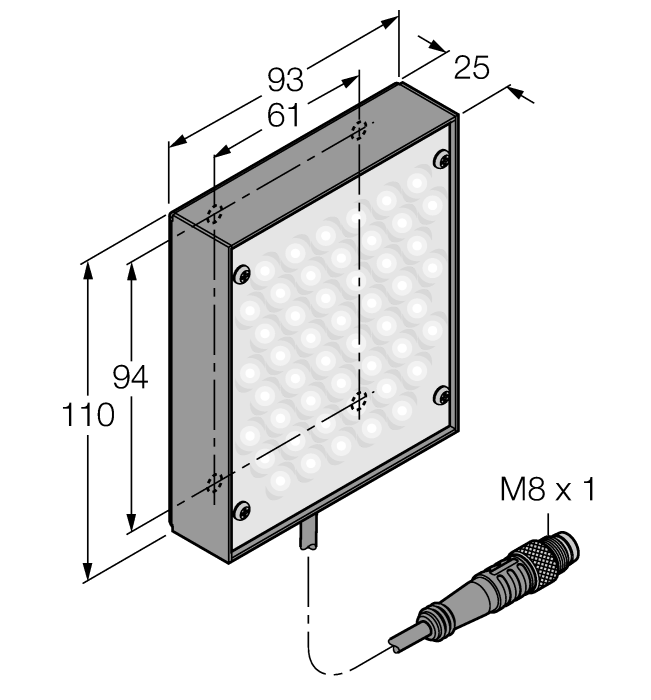

LEDRA80X80M | 3072268 |
|
PT300PSIG-2003-IX-H1143 | 100002236 |
|
M18SN6FF50 W/30 | 3050471 |
|

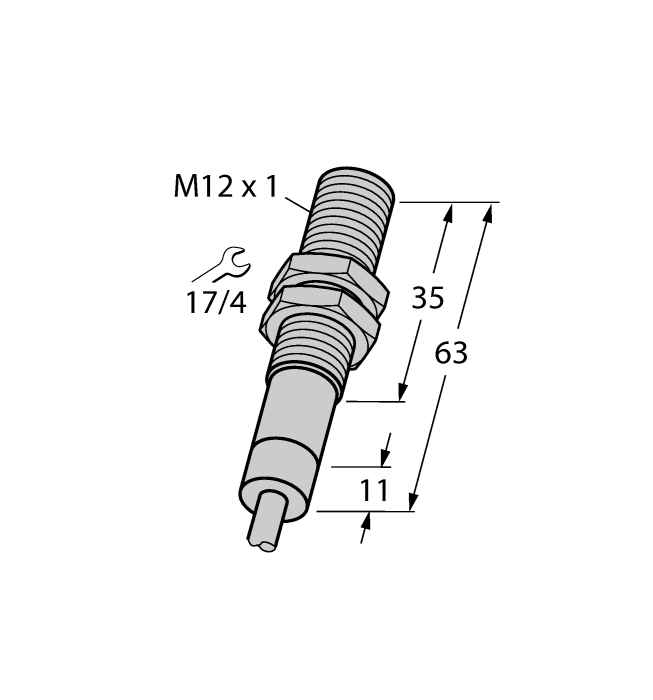

BI2-EM12D-AP6/S120
cylindrical, threaded barrel, 12 mm, stainless steel |
4614512 |
|
SLLR40-1400P8 | 3089107 |
Connectivity accessories — Network
|
|
BC5-S18-AP4X
Cylindrical, threaded barrel, 18 mm, plastic |
25030 |
