Product PT200PSIG-1005-U1-H1143/X
Pressure Transmitter
With Voltage Output (3-Wire)
Order number: 6836931- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Pressure range 0…200 psi relative
- Pressure tip orifice
- 12…33 VDC
- Analog output 0…10 V
- Process connection 7/16" UNF (SAE) male thread
- Plug-in device, M12 × 1
General data
| EAN | 4047101423068 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | CH |
| Weight | 90 g |
Technical Data
| Process connection | 7/16″-20 UNF male thread |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Ambient temperature | -30…+85 °C |
| Protection class | IP67 |
Mounting accessories
|
RSM RKM 5711-0.5M | U5452-54 |
|

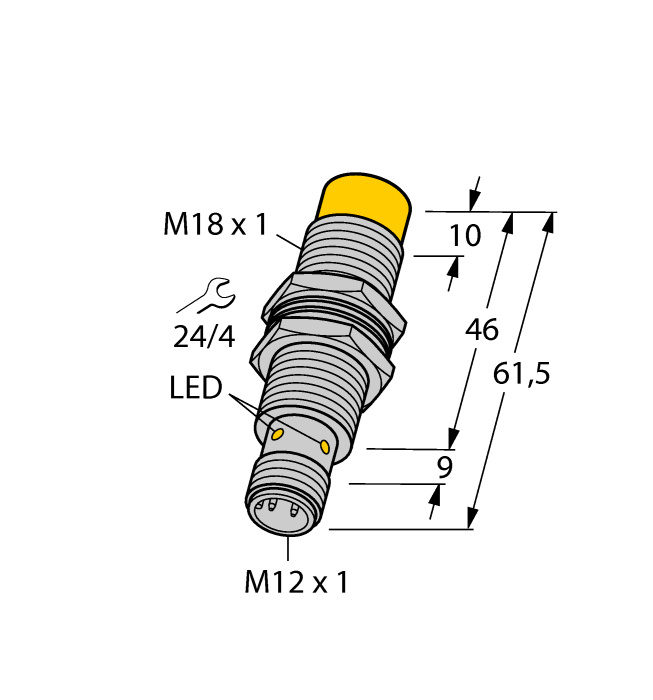

NI15U-M18M-VP44X-H1141
cylindrical, threaded barrel, 18 mm, chrome-plated brass |
1634879 |
|
RKSW-D9T451-20M | 6914189 |
|
LX3E | 3002658 |
|
RES-187H10E-3C13B-H1181 | 100016320 |
