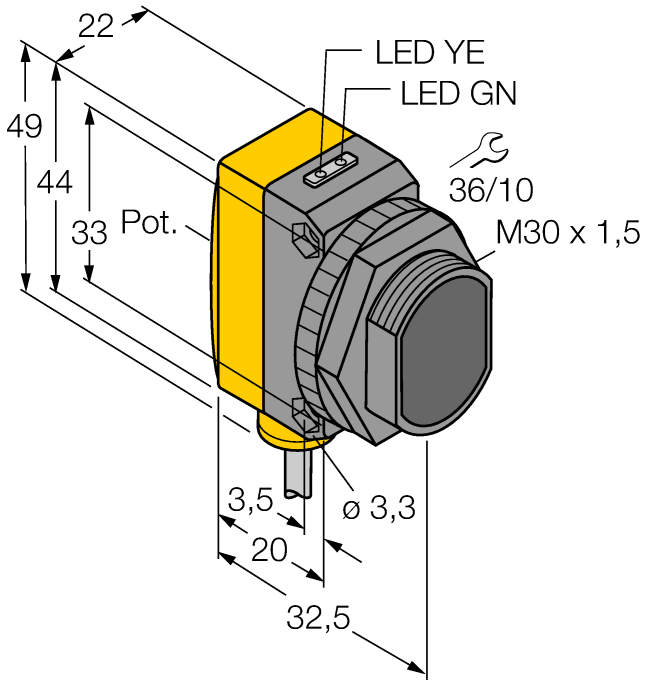

Product QS30LV
Photoelectric Sensor
Retroreflective Sensor
Order number: 3072605Alternative order number : 72605
- Cable, PVC, 2 m
- Protection class IP67
- LED all-round visible
- Sensitivity adjusted via potentiometer
- Operating voltage: 10…30 VDC
- Switching output, bipolar
- Light or dark operation
General data
| EAN | 662488726058 |
| eCl@ss-Code (V5.1.4): | 27270902 -/- Retroreflective sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 97 g |
Technical Data
| Design | Rectangular with thread |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP/NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, Thermoplastic material, Yellow |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Connectivity accessories
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
|
PKG3M-4/TEL | 6631056 |
Functional accessories
|
PT100PSIG-1014-I2-H1141 | 6836886 |
|
INS.P.POWER_SUPPLY-PSU67_3PHASE02.36 | 100032472 |
|
BMEL1216A | 3038541 |
