Product PS510-10V-01-2UPN8-H1141/X
Pressure Sensor
Relative Pressure: -1…10 Bar
Order number: 100001678- 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
- Housing is rotatable after mounting the process connection
- Metal measuring cell
- Pressure peak orifice
- Pressure range -1…10 bar relative
- 18…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link SSP4.1.1
- Process connection G1/4″ female thread
- Connector device, M12 × 1
General data
| EAN | 4047101554946 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | DE |
| Weight | 311 g |
Technical Data
| Process connection | G 1/4'' female thread |

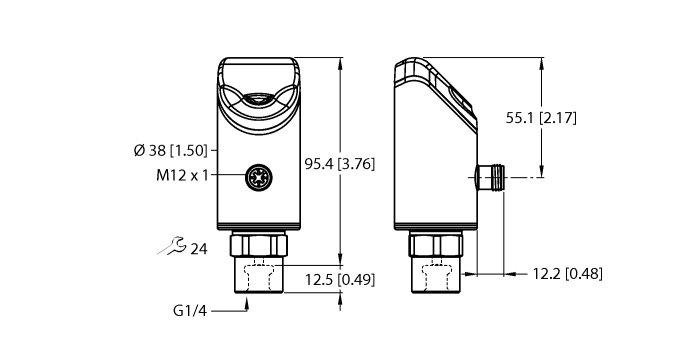

| Construction size | 107.9 x 38 x 50.2 mm |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
Data Sheets
| German | 122 KB |
| English | 122 KB |
| French | 122 KB |
| Spanish | 122 KB |
| Czech | 122 KB |
| Dutch | 122 KB |
| Romanian | 122 KB |
| Russian | 140 KB |
| Polish | 122 KB |
| Turkish | 123 KB |
