Product BCE3-S12-AP6X
Capacitive Sensor
With Potentiometer

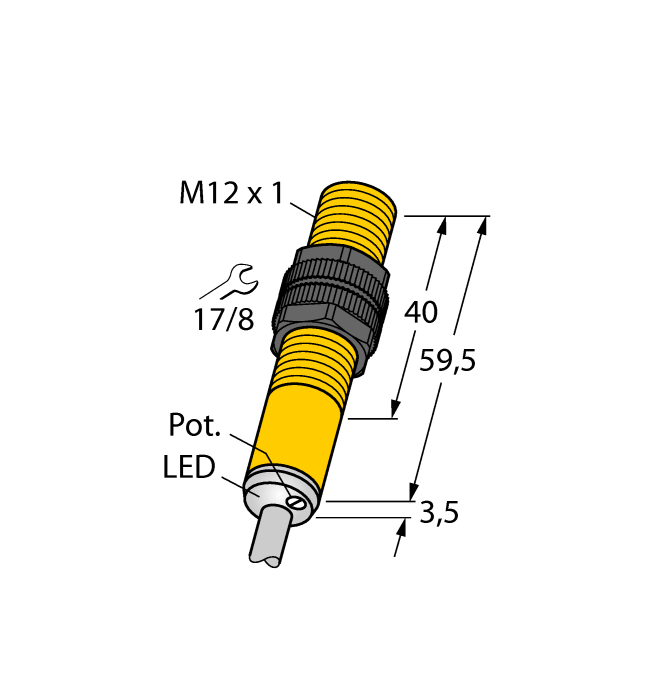

Order number: 100026590- Threaded barrel, M12 × 1
- Plastic, PA12‐GF30
- Fine adjustment via potentiometer
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
General data
| EAN | 4047101537260 |
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 70 g |
Technical Data
| Protection class | IP65 |
