Product YP2-MFS4-2MFK3
2-Way Splitter

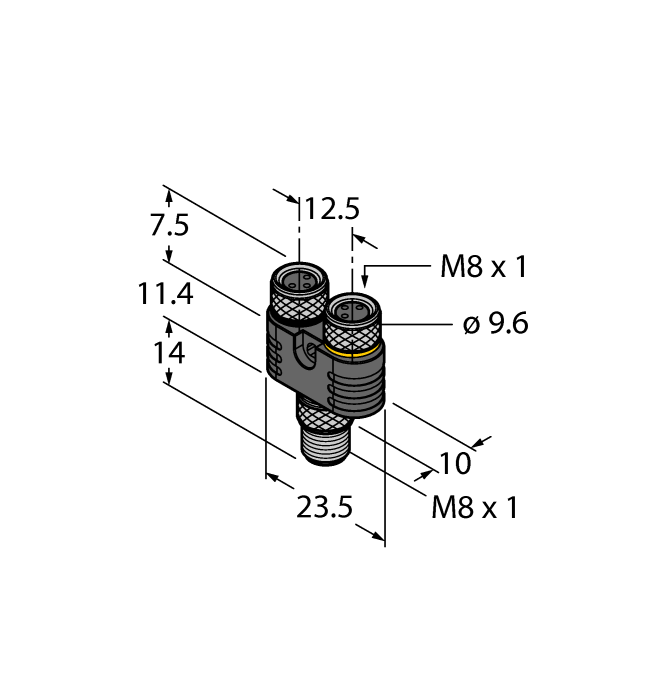

Y-Splitter without Cable, Male M8 × 1 - 2x Female M8 × 1
Order number: 6930553- M8 male, 4-pin
- M8 female, 3-pin
- RoHS-compliant
- Protection class IP67
General data
| EAN | 4047106165048 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 13 g |
Technical Data
| Application | Signal |
| Design | Y-splitter |
| Connector A | Male, M8 × 1 |
| Number of pins | 4/3 |
| Connector B | 2 x Female, M8 × 1 |
| Connector body | Plastic, TPU, Black |
| Coupling nut/retaining screw | Brass, Nickel-plated |
| Voltage | 30 V |
| Current | 4 A |
| Protection class | IP67 |
