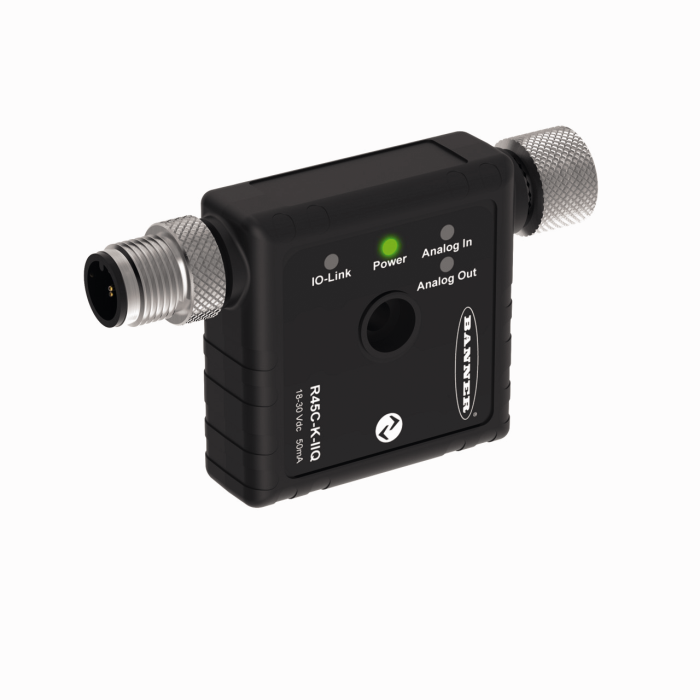

Product R45C-K-IIQ
Converter
Order number: 3812258- Protection classes IP67, IP68
- Flat, compact housing
- In-line mounting
- Operating voltage: 18…30 VDC
- Input: analog, 4…20 mA
- Output: IO-Link, 4…20 mA
- Converts the current signal into 16-bit process data
General data
| EAN | 662488112363 |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 78.47 g |
Technical Data
| Design | Rectangular |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PVC, Black |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP68 |
Connectivity accessories
|
T18RW3DQ3 | 3036922 |
|
INS.P.FLOW-FCS_G12A4_NAEX_H1141_AL100.01 | D102334 |
