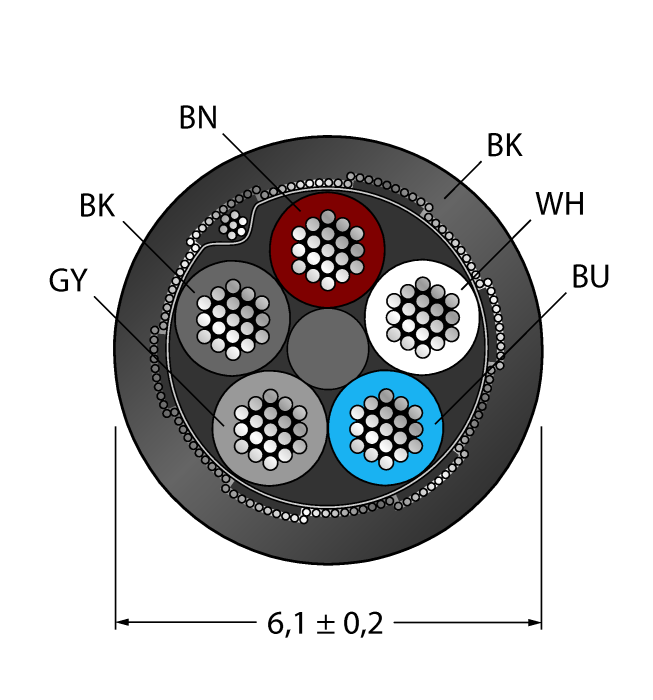

Product CABLE5X0.34-SH-PVC-BK-500M/TEL
Actuator and Sensor Cable, PVC
Bulk Cable
Order number: 6627975- 5-pin
- Jacket material: PVC, shielded
- Jacket color: black
- Resistant to chemicals and oils
- Flame retardant
- Resistant to acids and alkaline solutions
- Resistant to microbes and hydrolysis
- LABS free
- Protection class: IP67, IP69K
- Cable length: 500 m
General data
| EAN | 4047101323047 |
| eCl@ss-Code (V5.1.4): | 27069090 -/- Cable, line (other) |
| Customs tariff number | 85444995900 |
| Country of origin | CN |
| Weight | 3040 g |
Technical Data
| Cable length | 500.0 m |
| Ambient temperature | 0…+80 °C |
Mounting accessories
|
RKS4T-2/TXL
Connection cable, M12 female connector, straight, 3-pin, shielding on coupling nut; cable length: 2 m, jacket material: PUR, black; cULus approval |
6626293 |
|
FSFD54PL-0.5/M16 | 100028355 |
|
BI1.5-EG08-AP6X
Cylindrical, threaded barrel, 8 mm, stainless steel |
4602240 |
|
AIH401-N | 6884269 |
Connectivity accessories
|
PKG4M-1-PKW4M/TEL | 6633158 |
Functional accessories
|
PT5000PSIG-2004-I2-H1141 | 100000714 |
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
