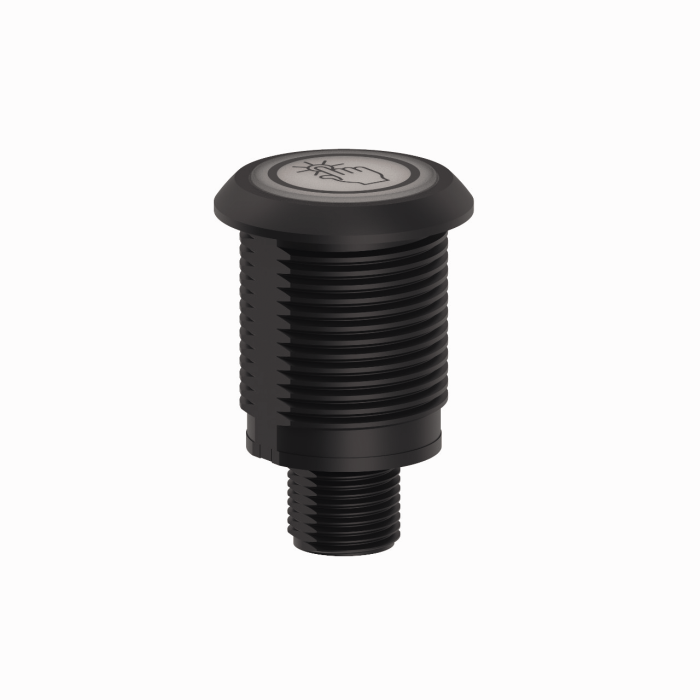

Product S22AMTSGREQ
Pick-to-Light
Placement Sensor
Capacitive Sensor
Order number: 3804312Alternative order number : 804312
- Protection class IP67/IP69K
- M12 × 1 male connector, 5-pin
- Job light: green
- Mispick: red
- Actuation: not signalled
- Operating voltage 10…30 VDC
- Bipolar switching function
- NO contact
General data
| EAN | 662488031244 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 21 g |
Technical Data
| Design | Threaded barrel |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP66/IP67/IP69 |
Mounting accessories
|
PT300PSIG-1014-U1-DA91/X | 6837001 |
Connectivity accessories
|
PT600R-2008-I2-DA91/X | 6836660 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
Functional accessories
|
Q40SN6FF400Q2 | 3034009 |
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
