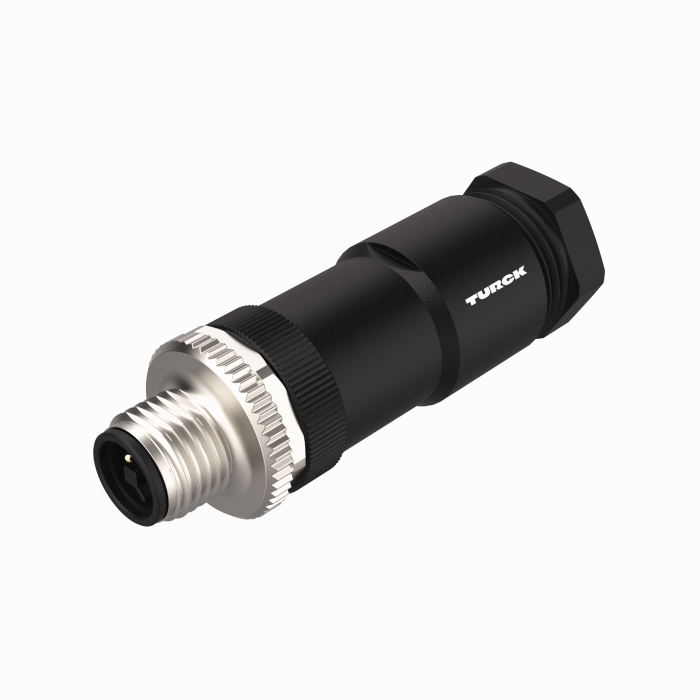

Product FW-ERSPM0414-PT-S-0810
Field-Wireable Connector
M12 Power

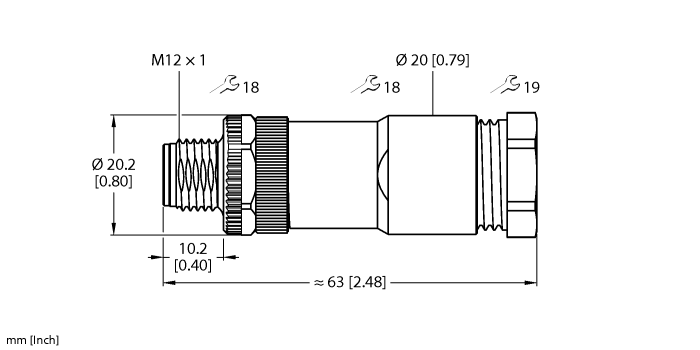

Male Connector M12 × 1, Straight
Order number: 100026335- T-coding
- Metal retaining screw
- Screw-clamp terminal
- 4-pin
- Cable feedthrough: 8.0…10.0 mm
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (with cable end sleeve)
- Max. 2.5 mm² or 14 AWG (without cable end sleeve)
General data
| EAN | 4047101537055 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 26 g |
Data Sheets
| German | 146 KB |
| English | 146 KB |
| French | 147 KB |
| Spanish | 146 KB |
| Czech | 146 KB |
| Dutch | 145 KB |
| Romanian | 146 KB |
| Russian | 152 KB |
| Polish | 148 KB |
| Chinese | 224 KB |
| Turkish | 146 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
