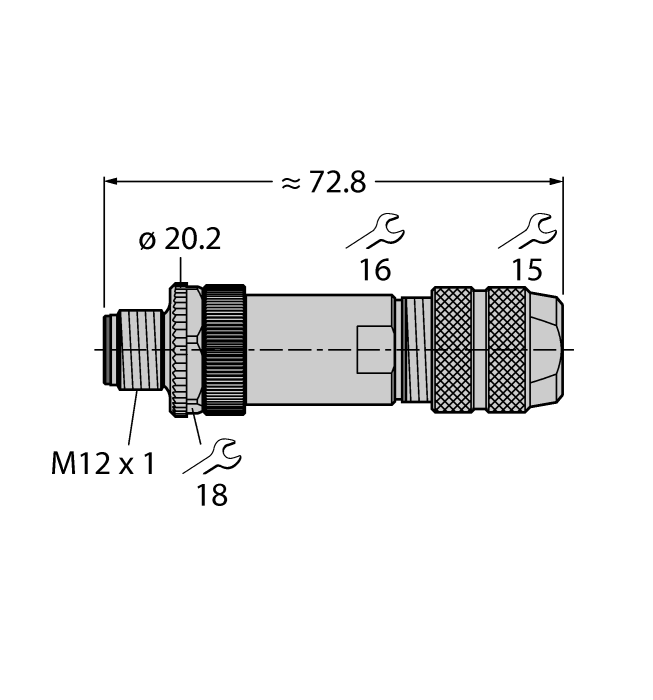

Product FW-M12ST5W-G-ZF-ME-SH-9
Field-Wireable Connector
Male Connector M12 × 1, Straight
Order number: 6604211- For use in PROFIBUS-DP applications
- Up to 12 Mbps
- Shielding via iris spring connection
- B-coding
- Metal housing
- Tension spring connection
- 5-pin
- M18 × 1 metric screw-in thread
- Cable diameter 7.0…9.0 mm
General data
| EAN | 4047101458091 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 52 g |
Technical Data
| Device type | Field-wireable connector |
