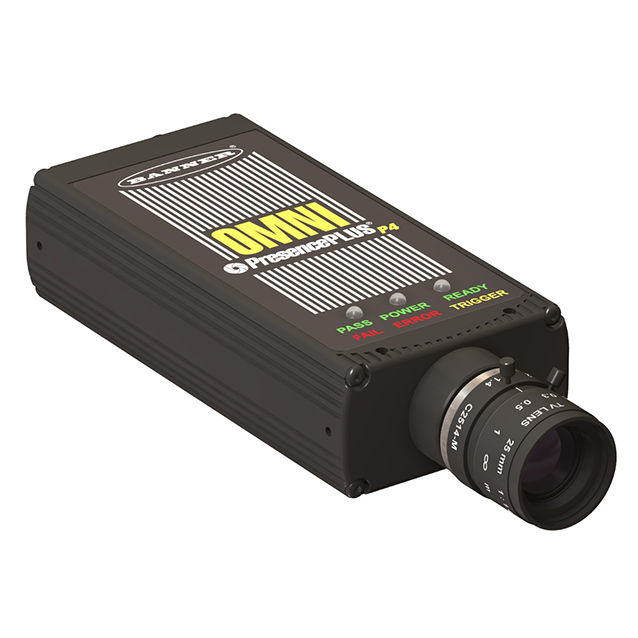

Product P4OI-BC
Image Processing
Camera with Integrated Analysis
Order number: 3075397Alternative order number : 75397
- Full scope of function, AREA, EDGE and GEO
- 1/3“ CMOS, 752x480 pixels
- RGB- / HSI color space
- One-piece design with camera and integrated controller
- Lens connection in longitudinal axis of housing
- protection class IP20
- Lens to be ordered separately
- Operating voltage: 10…30 VDC via M12 x 1 male, 12-pin
- External trigger input
- External strobe output, M8x1, 3-pin
- EtherNet/IP and Modbus TCP interface via RJ45
- RS232 data communication
- Coaxial BNC video connection cable
General data
| EAN | 662488753979 |
| eCl@ss-Code (V5.1.4): | 27310201 -/- Camera (image processing) (P3/P4, iVu) |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 735 g |
Technical Data
| Design | Inline |
| Operating voltage | 10…30 VDC |
| Current output | 150 mA |
| Communication protocol | EtherNet/IP, Modbus TCP, Modbus TCP, PCCC, RS232 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, AL |
| Ambient temperature | 0…+50 °C |
| Protection class | IP20 |
