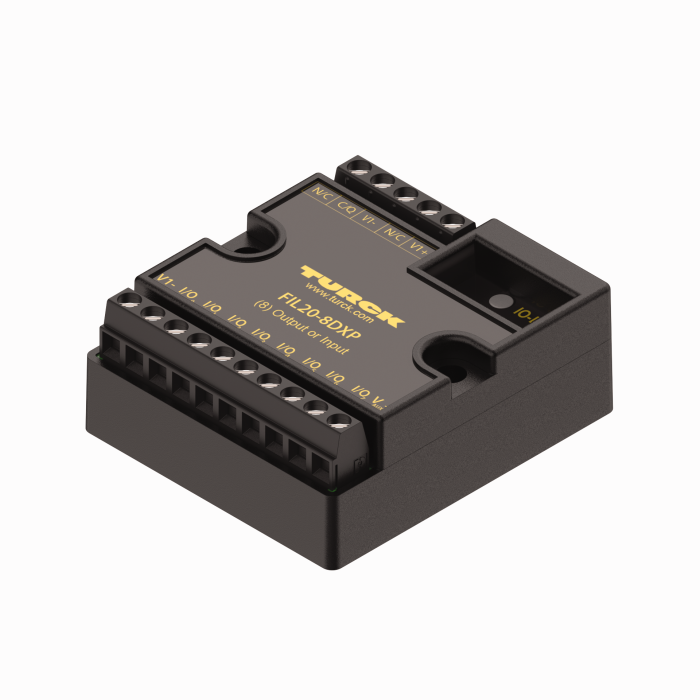

Product FIL20-8DXP
I/O Hub for Connection of Digital Signals to IO-Link Master
Eight Universal Digital Channels, PNP
Order number: 100005646- Rugged, I/O hub in IP20
- Eight universal digital channels
- Metal screw terminal connectors
- 8 universal digital channels, DI/DO
- 24 VDC, PNP
- Output current: 1.0 A
- I&M data sets support installation and maintenance
- IO-Link diagnostics for short-circuit and supply voltage
General data
| EAN | 4047101556087 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 98 g |
Technical Data
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
