Product RA-MW-B0-6.5-PS1-6
Accessories

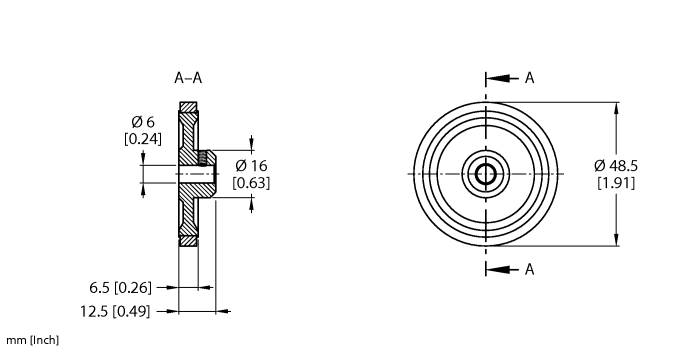

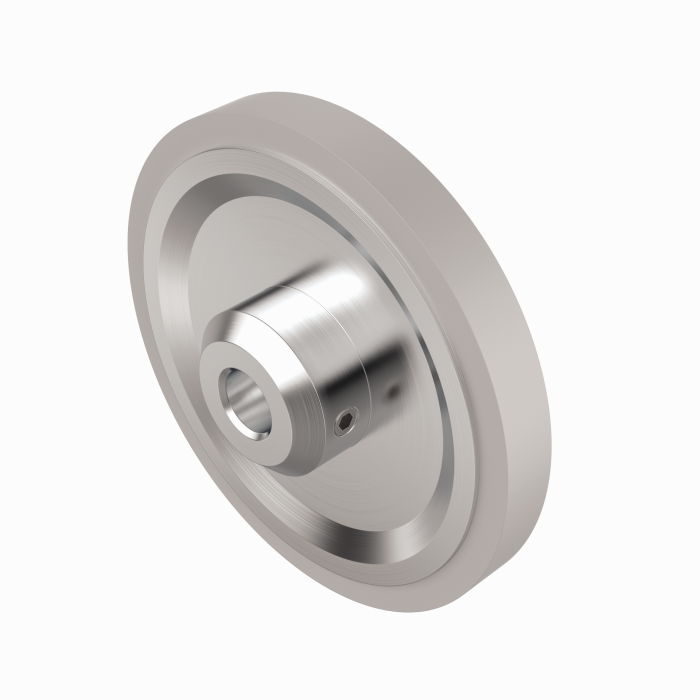

Measuring Wheel
For Solid Shaft Encoders
Order number: 100038300- For length measurement
- Circumference: 6″
- Material: Aluminum
- Surface: Polyurethane, smooth
- Application area: greased metals, steel profiles, painted surfaces, plastics, cardboard, wood, textiles, wire, leather
General data
| EAN | 4047101593341 |
| eCl@ss-Code (V5.1.4): | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 76169990990 |
| Country of origin | DE |
| Weight | 26 g |
Technical Data
| Ambient temperature | -30…+80 °C |
Connectivity accessories
|
T18RW3DQ3 | 3036922 |
|
INS.P.FLOW-FCS_G12A4_NAEX_H1141_AL100.01 | D102334 |
