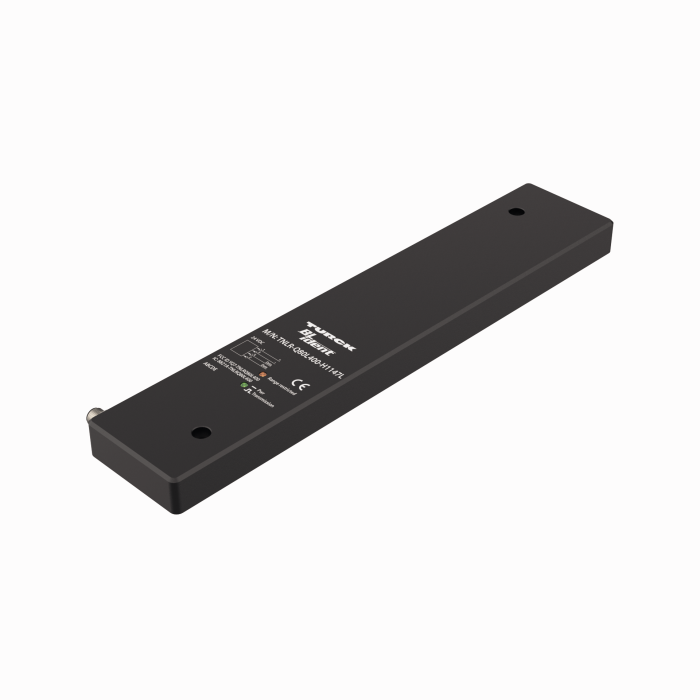

Product TNLR-Q80L400-H1147L
HF Read/Write Head
Order number: 7030234- For roller conveyors
- The approach direction of the tag can be both, diagonal as well as longitudinal to the read/write head.

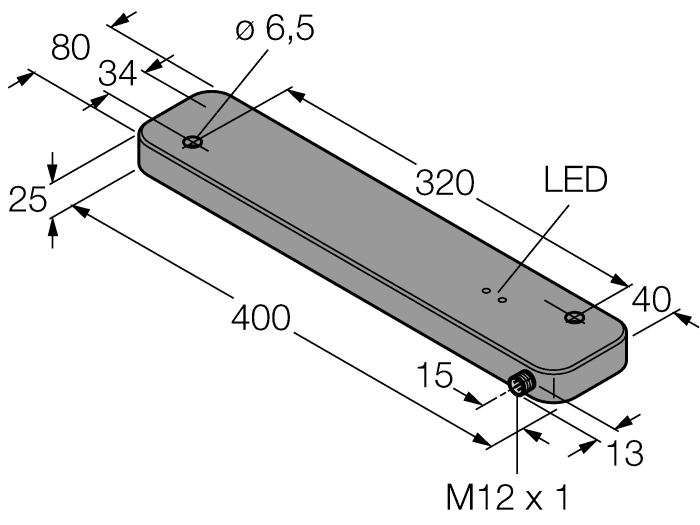

- Rectangular, 80 x 400 mm, height 25 mm
- Active face on top
- Plastic, PBT-GF30-VO
- Powered and operated only via connection to BL ident interface module
- Electrical connection only via BL ident extension cable
General data
| EAN | 4047101206937 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 1182 g |
Technical Data
| Design | Rectangular |
| Operating voltage | 19.2…28.8 VDC |
| Electrical connection | M12 × 1 |
| Housing material | Plastic, PBT-GF30-V0, Black |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
PT300PSIG-1014-U1-DA91/X | 6837001 |
Connectivity accessories
|
PT600R-2008-I2-DA91/X | 6836660 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
Functional accessories
|
Q40SN6FF400Q2 | 3034009 |
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
