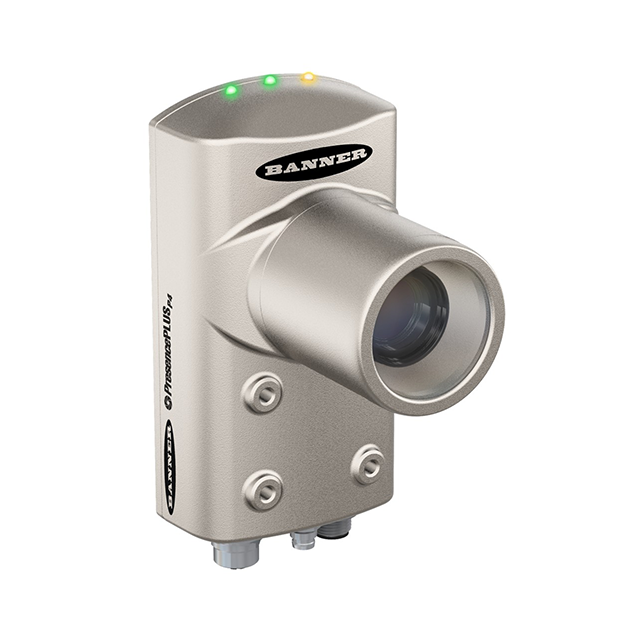

Product P4ORS
Image Processing
Camera with Integrated Analysis
Order number: 3010407Alternative order number : 10407
- Full scope of function, AREA, EDGE and GEO
- 1/3“ CCD, 640x480 pixels
- 256 gray scale values
- One-piece design with camera and integrated controller
- Lens connection vertical to longitudinal axis of housing
- Protection class IP68
- Lens to be ordered separately
- Operating voltage: 10…30 VDC via M12 x 1 male, 12-pin
- External trigger input
- External strobe output, M8x1, 3-pin
- EtherNet/IP and Modbus TCP interface, M12x1, 8-pin
- RS232 data communication
- Video input
