Product IM82-24-10
Switching Power Supply Module
Order number: 7545043- Output voltage adjustable 22.5…28.5 VDC
- Nominal current 10 A
- Single/parallel operating mode
- Surge protection
- Universal operating voltage
- Mains failure bridging up to 30 ms
- High efficiency
- Natural air cooling
- Power-good relay
- cULus listed
- Safety extra-low voltage SELV IEC/EN 60950
- SEMI-F47
General data
| EAN | 4047101262834 |
| eCl@ss-Code (V5.1.4): | 27230209 -/- Current supply, voltage |
| Customs tariff number | 85044095900 |
| Country of origin | TW |
| Weight | 1448 g |
Technical Data

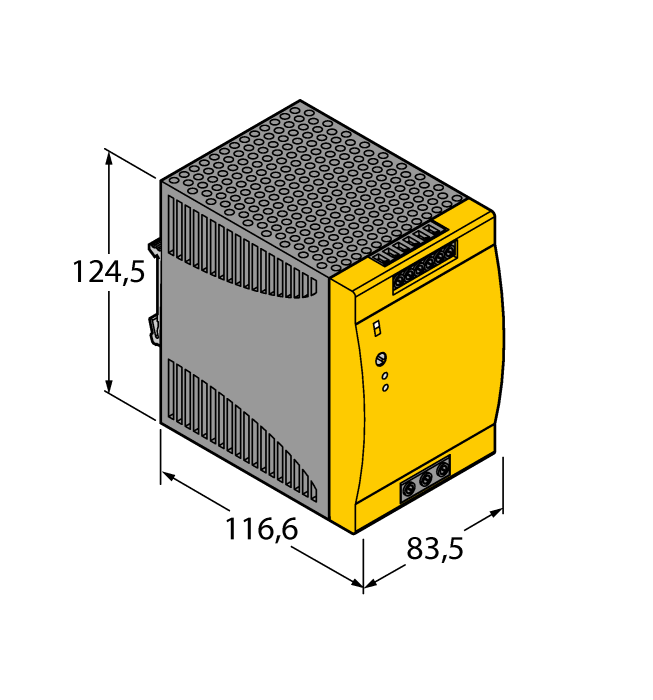

| Construction size | 124.5 x 83.5 x 116.6 mm |
| Operating voltage | 90…132 VAC / 210…370 VDC |
| Electrical connection | Screw terminals |
| Housing material | Metal, Polycarbonate/ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP20 |
