Product NI20R-
Inductive Sensor
Ring Probe
Order number: 1410001- Rectangular, height 32 mm
- Plastic, ABS
- Modular mounting with the S32SR-AP44X-S1131 or S32SR-VP44X switching amplifier
General data
| EAN | 4047101069037 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 469 g |
Technical Data

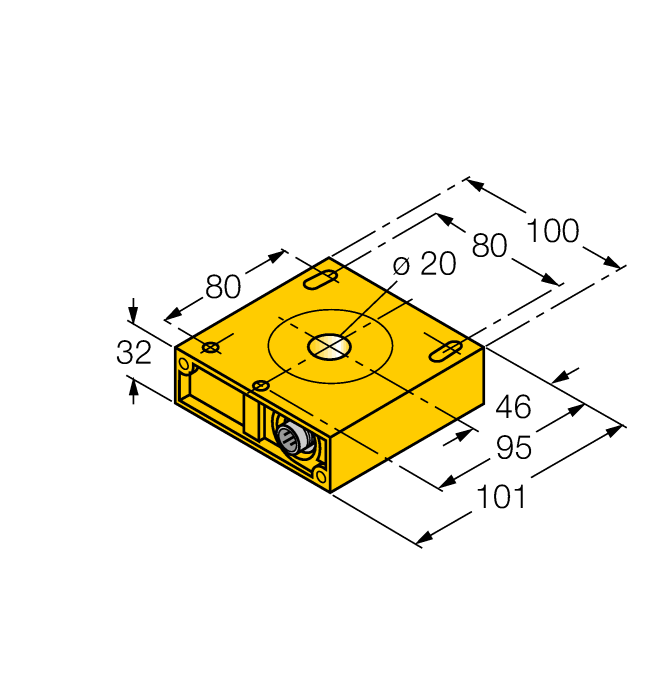

| Construction size | 95 x 100 x 32 mm |
| Operating voltage | 10…55 VDC |
| Housing material | Plastic, ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP65 |
