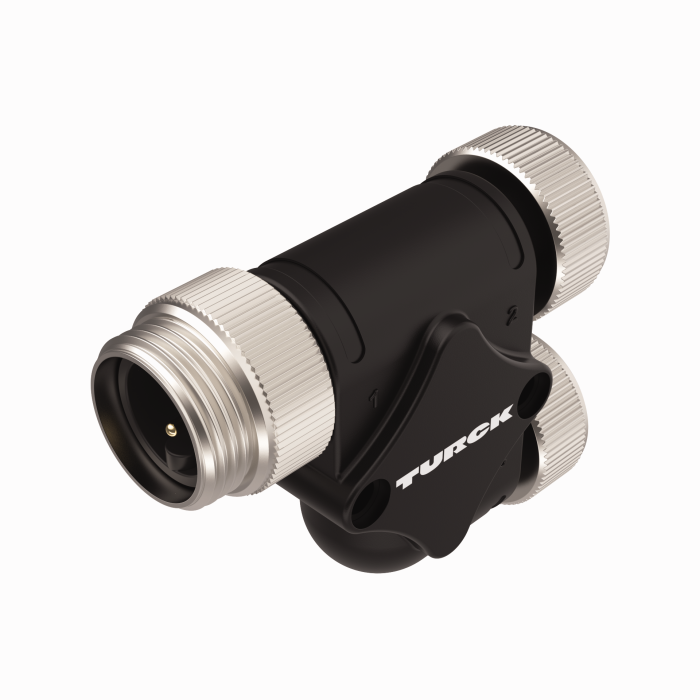

Product XSH-RSM-2RKM 20
2-Way Splitter
h-Splitter
2-Wire
Order number: U2-23664- 7/8" connector
- Male – 2 x female, 2-pin
- Wired in parallel
- cULus listed
- RoHS-compliant
- Protection class: NEMA 1, 3, 4, 6P and IEC IP67

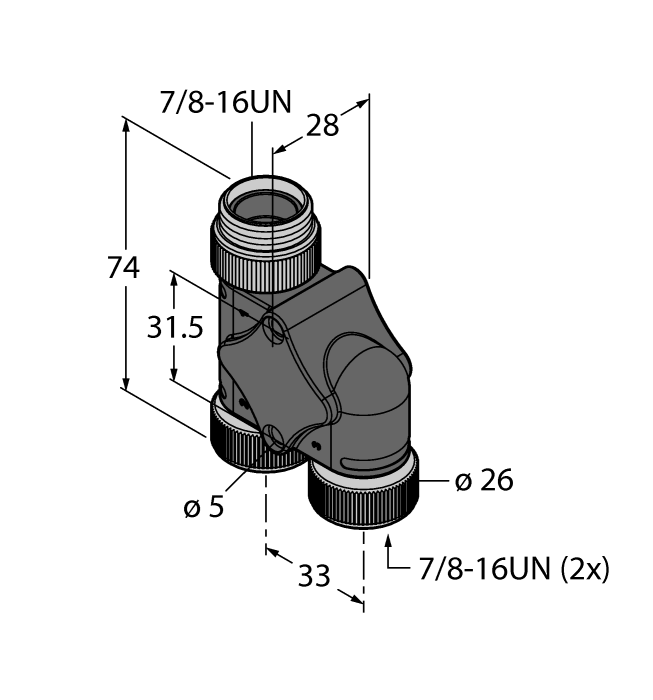

- 7/8″ male connector, straight, 2-pin
- 2 × 7/8″ female connector, straight, 2-pin
General data
| EAN | 4047101383614 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 137 g |
Technical Data
| Ambient temperature | -40…+105 °C |
Mounting accessories
|
FS46PT-0.5/M16 | U2-28482 |
|
RKM 5711-1M | U0134-40 |
Connectivity accessories
|
PT4R-2004-U1-H1143 | 100048487 |
|
RSSD-RSSD-4422-18M | 6635887 |
