Product Q130RA-2450-AFQ
Radar Sensor
With Switching Output
Order number: 3806646Alternative order number : 806646
- Protection class IP67
- M12 × 1 connector, 5-pin
- Operating voltage 12…30 VDC
- PNP/NPN switching output
General data
| EAN | 662488051112 |
| eCl@ss-Code (V5.1.4): | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 85261000900 |
| Country of origin | US |
| Weight | 443 g |
Technical Data

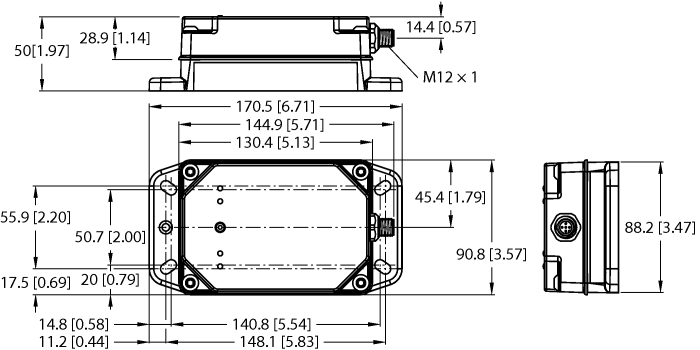

| Construction size | 50 x 90.8 x 170.5 mm |
| Operating voltage | 12…30 VDC |
| Output function | NO/NC programmable, PNP/NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS/Polycarbonate, Grey |
| Ambient temperature | -40…+65 °C |
| Protection class | IP67 |
Mounting accessories
|
FS46PT-0.5/M16 | U2-28482 |
|
RKM 5711-1M | U0134-40 |
Connectivity accessories
|
PT4R-2004-U1-H1143 | 100048487 |
|
RSSD-RSSD-4422-18M | 6635887 |
