Product BTS-DSU35-ZF07-M8
Mounting Accessories

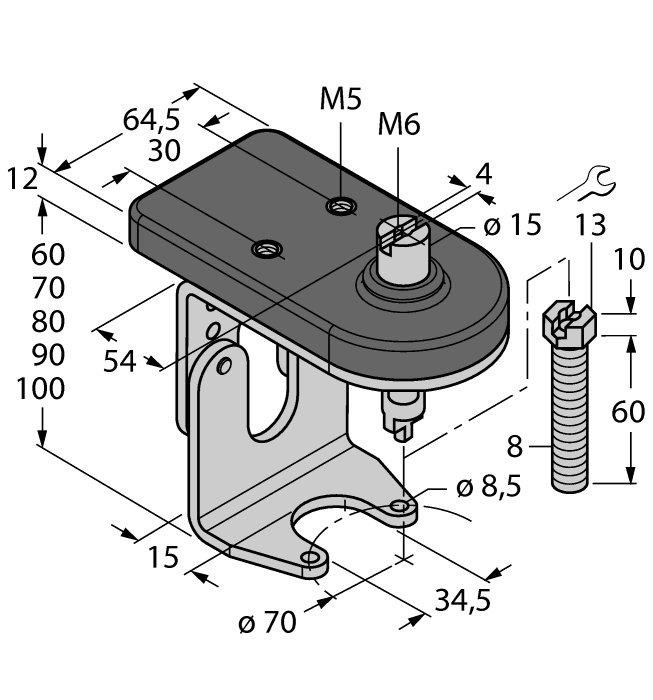

Mounting kit for manual valves
Order number: 6901127- Mounting kit with mounting plate for dual sensor and actuator (puck)
- For manual valves of the size F07 acc. to ISO 5211 / DIN 3337
- Height-adjustable
- Adjustable shaft peg with self-locking M8 nut
- Robust stainless steel
- Vestamid mounting plate for sensors
General data
| EAN | 4047101246384 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 90319000000 |
| Country of origin | DE |
| Weight | 481 g |
Technical Data
| Construction size | 104 x 60 x 92 mm |
| Housing material | Plastic, 1.4301 (AISI 304)/Vestamid |
