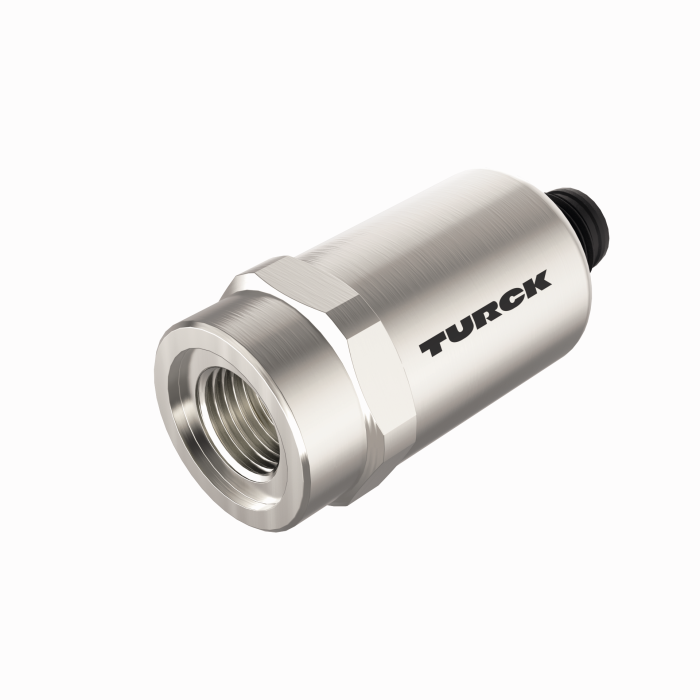

Product PT3000PSIG-2001-I2-H1143/X
Pressure Transmitter
With Current Output (2-Wire)
Order number: 100001926- Fully welded metal measuring cell
- Pressure range 0…3000 psi rel.
- Pressure peak orifice
- 7…33 VDC
- Analog output 4…20 mA

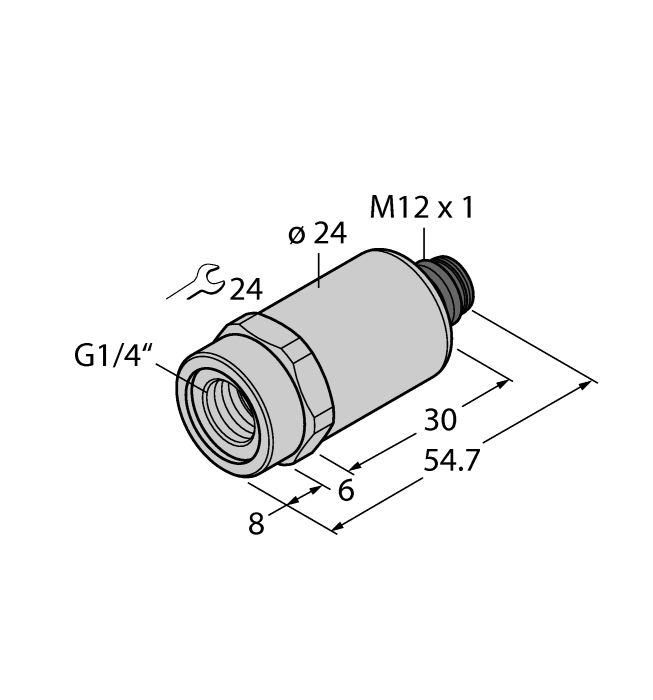

- Process connection G1/4" female thread, front sealing
- Connector device, M12 × 1
General data
| EAN | 4047101454406 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | CH |
| Weight | 100 g |
Technical Data
| Operating voltage | 7…33 VDC |
| Output function | Analog output current |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Ambient temperature | -30…+85 °C |
| Protection class | IP67 |
| Approvals | CE, Metrological certification (RUS), cULus |
Mounting accessories
|
S18LYXXPQ | 3020928 |
|
PS100R-511-2UPN8X-H1141 | 6832938 |
|
PT10R-2014-IOL-H1141/X | 100027099 |
|
K90TLGYRNQ | 3092873 |
Connectivity accessories
|
PT4R-2004-U1-H1143 | 100048487 |
|
RSSD-RSSD-4422-18M | 6635887 |
