Product Q45ULIU64BCR W/30'
Ultrasonic Sensor
diffuse mode sensor
With Analog Output
Order number: 3047556Alternative order number : 47556
- Measuring range adjustable via teach button or control line
- Response time, adjustable
- Analog output can be used for voltage or current
- Teach-in function
- Convertible output curves
- Aperture angle of sonic cone 12 °
- Blind zone: 25 cm
- Range: 300 cm
General data
| EAN | 662488475567 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 884 g |
Technical Data

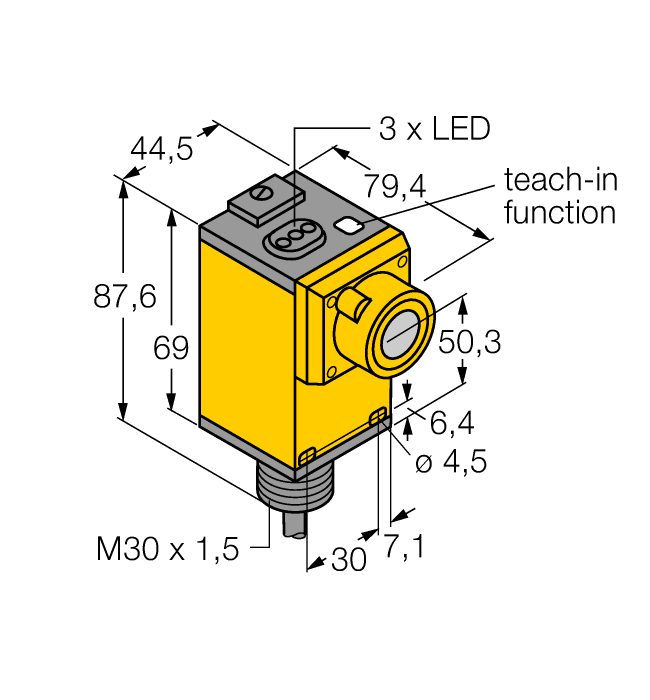

| Construction size | 79.4 x 44.5 x 87.6 mm |
| Operating voltage | 12…24 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Cable |
| Cable length | 9.0 m |
| Housing material | Plastic, PBT |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
