Product RKC 4.5T-30-RSC 4.5T/S101/CS10288

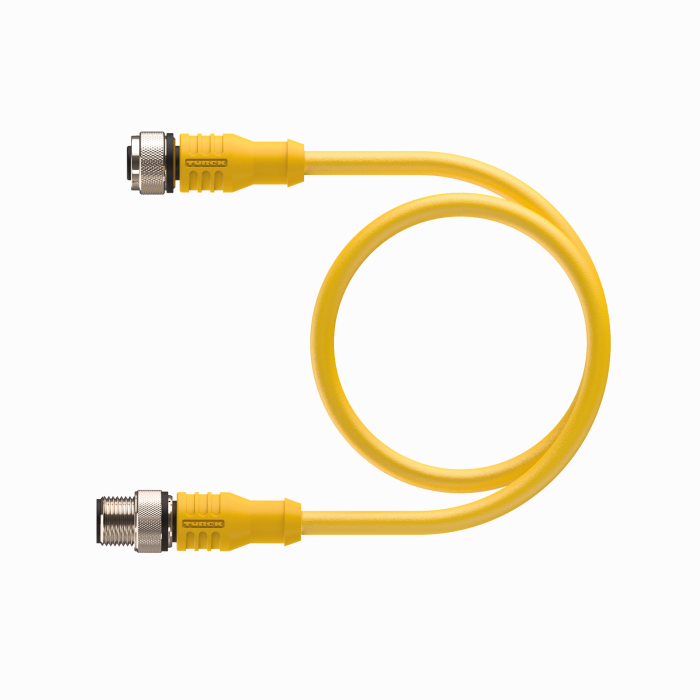

Actuator and Sensor Cable

Verbindungsleitung

Order number: U-86811

M12 female connector, straight, 5-pin

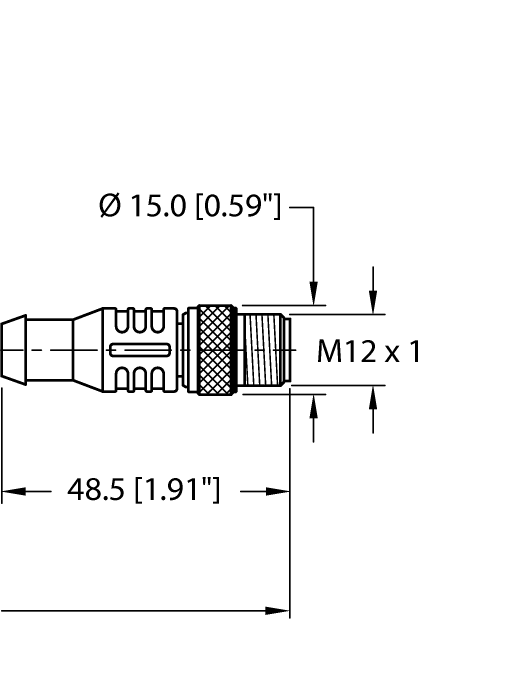

M12 male connector, straight, 5-pin

Flexlife cable
TPE jacket, yellow, 5 × 18 AWG
-40 °C cold bending strength
Fire classes: UL1061, CSA FT1
Flexlife and C-Track approved

Hide All Open All

Specifications
Download
Accessories

General data

eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator

Technical Data

Cable length	30.0 m
Ambient temperature	5…+105 °C

Data Sheets

German	952 KB
English	951 KB
French	952 KB
Spanish	952 KB
Czech	952 KB
Dutch	951 KB
Romanian	952 KB
Russian	877 KB
Polish	953 KB
Chinese	1041 KB
Turkish	952 KB

CAD File

3D-1 (STP)	64 KB

CAD STP File

3D STP file	4223 KB

Data sheet

RKC 4.5T-x-RSC 4.5T/S101/CS10288	1046 KB

Product Flyer

Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Connectivity accessories

	IMX12-AI01-2I-2IU-HPR/24VDC Isolating transducer; 2-channel; power supply of passive 2-wire isolating transducers with HART	7580304
	RKCV-RKCV-FBY49BU-1.5M/5D	8900549
	LE550DC1 W/30	3095384
	BSS-08 Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene	6901322
	RSC4.4T-15/TXG	6634164
	TI-BL20-E-EN-S-6 BL ident interface set	7030632

Functional accessories

	RKP56PLB-10-RSP56PLB/TXG	100003349
