Product D10INFPQ
Photoelectric Sensor
Photoelectric Sensor for Plastic Fibers
Order number: 3062386Alternative order number : 62386
- Male 8 mm, 6-pin, snap-lock
- Teaching function
- Response time, adjustable
- Red visible light
- Operating voltage 12…24 VDC
- Optical sensitivity, adjustable
- Switch-off delay (0…100 ms)
General data
| EAN | 662488623869 |
| eCl@ss-Code (V5.1.4): | 27270905 -/- Fiber optic sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 90 g |
Technical Data

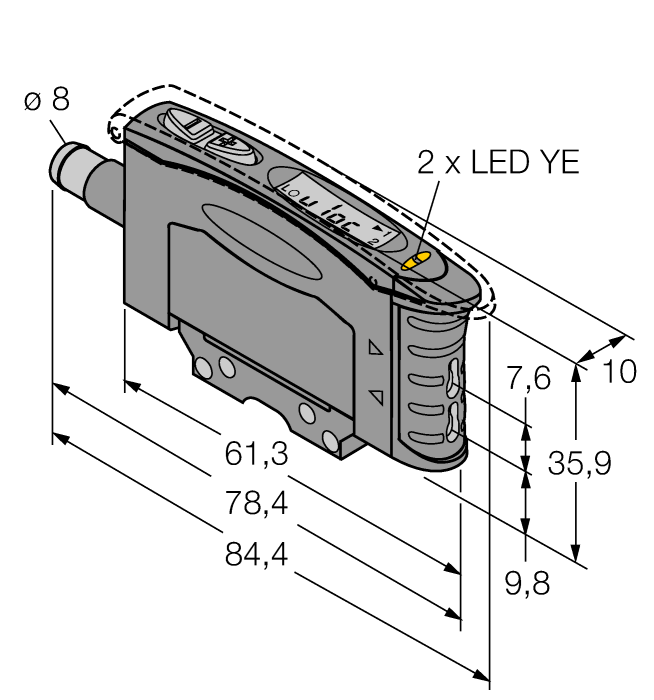

| Construction size | 84.4 x 10.5 x 35.9 mm |
| Operating voltage | 12…24 VDC |
| Output function | NO contact, NPN |
| Current output | 4…20 mA |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -10…+55 °C |
| Protection class | IP50 |
Connectivity accessories
|
PT4R-2004-U1-H1143 | 100048487 |
|
RSSD-RSSD-4422-18M | 6635887 |
