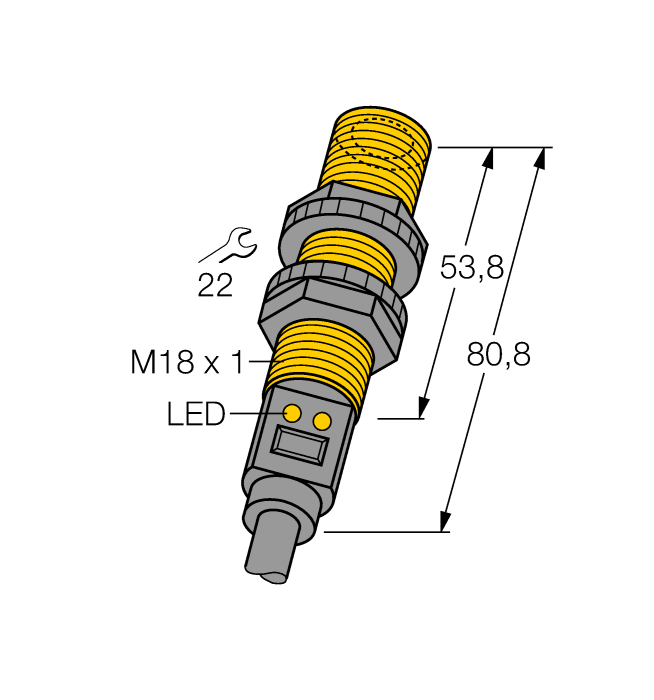

Product S18UUA W/30
Ultrasonic Sensor
diffuse mode sensor
With Analog Output
Order number: 3002701Alternative order number : 02701
- Compact design
- Cable, 2 m
- Temperature compensation
- Very small blind zone
- Measuring range adjustable via teach-in
- Blind zone: 3 cm
- Range: 30 cm
General data
| EAN | 662488027018 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 644 g |
Technical Data
| Design | Tube |
| Operating voltage | 10…30 VDC |
| Voltage output | 0…10 V |
| Electrical connection | Cable |
| Cable length | 9.0 m |
| Housing material | Plastic, ABS/Polycarbonate |
| Ambient temperature | -20…+60 °C |
| Protection class | IP67 |
