Product PT0.05V-1504-I2-H1143/D840
Pressure Transmitter
With Current Output (2-Wire)
Order number: 100004278- Ceramic measuring cell
- Extremely high measuring accuracy
- Compact and robust design
- Excellent temperature behavior
- Pressure range -50…50 mbar rel.
- 10…30 VDC
- Analog output 4…20 mA
- Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
- Connector device, M12 × 1
General data
| EAN | 4047101553642 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | CH |
| Weight | 90 g |
Technical Data
| Electrical connection | Connector |
| Protection class | IP67 |
Connectivity accessories — Power supply
|
SLM50B6 W/30 | 3075017 |
|
LTX3500M-F10-LI0-X3-H1151 | 1540324 |
|
HT-WWAS4-2/S2430 | 8039469 |
|
PT130PSIV-1014-I2-H1143/X | 6837529 |
|
LI800P0-Q25LM0-IOLX3-H1141
Cuboid-shaped, aluminium / plastic |
100012831 |
Connectivity accessories — I/O
|

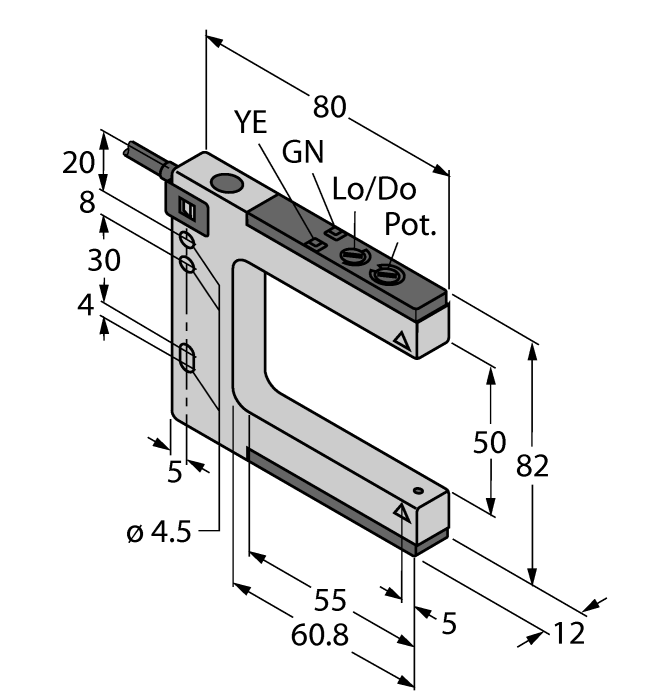

SLPCR25-690P8 | 3083623 |
|
PT600R-2008-I2-DA91/X | 6836660 |
