Product BC5-M18-RZ3X

Zoom

Capacitive Sensor

Order number: 2305100

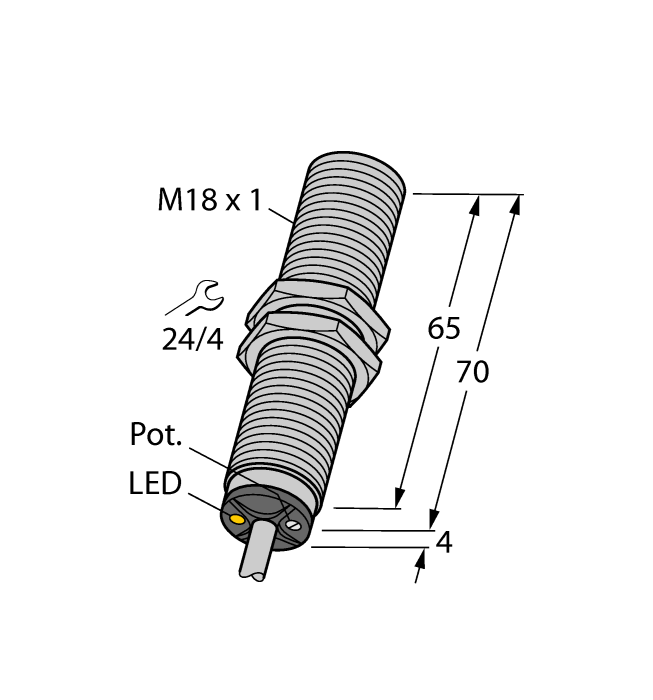

M18 × 1 threaded barrel
Chrome-plated brass

Fine adjustment via potentiometer

AC 2-wire, 20…250 VAC
NC contact
Cable connection

Hide All Open All

Specifications
Download
Accessories
CAD

General data

EAN	4047101088243
eCl@ss-Code (V5.1.4):	27270102 -/- Capacitive proximity switch
Customs tariff number	85365080000
Country of origin	DE
Weight	154 g

Technical Data

Construction size	74 mm
Operating voltage	20…250 VAC
Output function	NC contact, 2-wire
Electrical connection	Cable
Cable length	2.0 m
Housing material	Metal, CuZn, Chrome-plated
Ambient temperature	-25…+70 °C
Protection class	IP67
Approvals	UL

Data Sheets

German	1705 KB
English	1705 KB
French	1706 KB
Spanish	1705 KB
Czech	1705 KB
Dutch	1705 KB
Romanian	1706 KB
Russian	1566 KB
Polish	1707 KB
Chinese	1761 KB
Turkish	1705 KB

Approval/Declaration

CCC — 2003010305073376_78	3001 KB
EU — DoC	117 KB
UKCA	115 KB

CAD File

2D (DWG)	207 KB
3D-1 (STP)	18 KB

Product Overview

Overview of Capacitive Sensors	1259 KB
