Product BMWS8251-8.5
Field-Wireable Connector

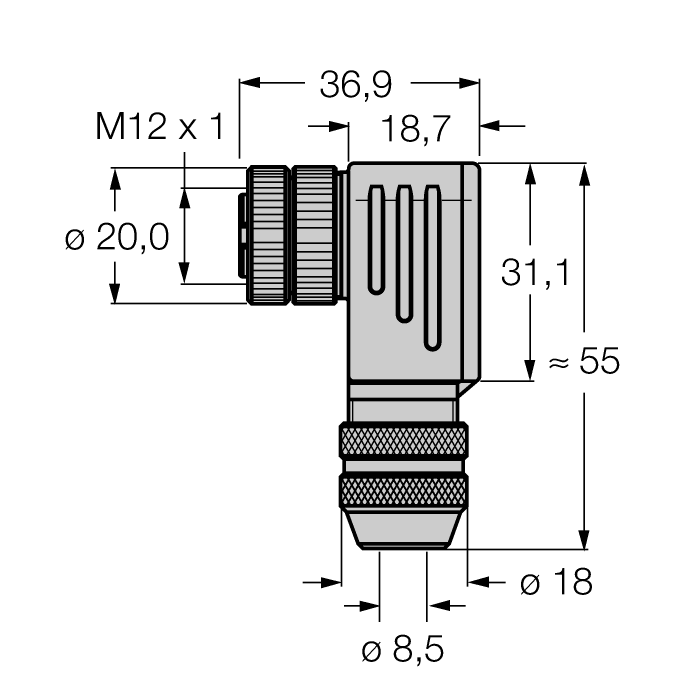

Female Connector M12 × 1, Angled
Order number: 6904723- For use in PROFIBUS-DP applications
- Up to 12 Mbps
- Shielding via iris spring connection
- B-coding
- Metal housing
- Screw-clamp terminal
- 5-pin
- M18 × 1 metric screw-in thread
- Cable diameter 6.0…8.5 mm
General data
| EAN | 4047101458558 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 73 g |
Data Sheets
| German | 142 KB |
| English | 142 KB |
| French | 143 KB |
| Spanish | 143 KB |
| Czech | 143 KB |
| Dutch | 142 KB |
| Romanian | 142 KB |
| Russian | 173 KB |
| Polish | 143 KB |
| Chinese | 162 KB |
| Turkish | 144 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
