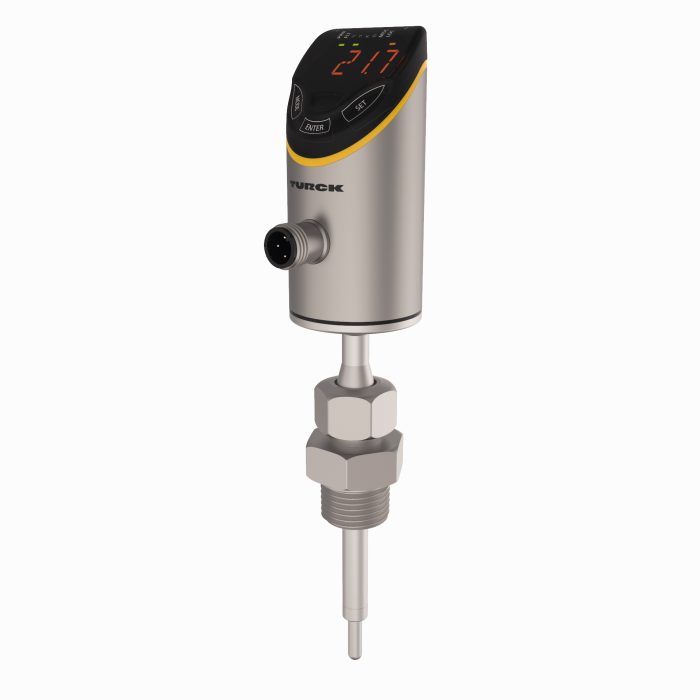

Product TS700-L050-16-LI2UPN8-H1141
Temperature Detection
With Current or Voltage Output and PNP/NPN Transistor Switching Output
Order number: 100004382- Screw-in adapter with process connection NPT1/2" male thread included in delivery
- 4-digit, 2-colored, 12-segment display, rotatable by 180°
- Upper part of housing can be rotated up to 340°
- Materials in contact with media: 1.4404 (316L), CR O-ring
- Immersion length: 50 mm
- 17…33 VDC
- NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link
- Various IO-Link mapping profiles can be selected
General data
| EAN | 4047101498561 |
| eCl@ss-Code (V5.1.4): | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 90251900900 |
| Country of origin | DE |
| Weight | 391 g |
Technical Data
| Design | With display (integrated probe) |
| Construction size | 162.4 x 38 mm |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, cULus |
Data Sheets
| German | 79 KB |
| English | 78 KB |
| French | 79 KB |
| Spanish | 77 KB |
| Czech | 79 KB |
| Dutch | 78 KB |
| Romanian | 79 KB |
| Russian | 88 KB |
| Polish | 79 KB |
| Chinese | 127 KB |
| Turkish | 79 KB |
