Product BSWM19-E01-2/S90 (OBS)
Actuator and sensor cable
Connection Cable

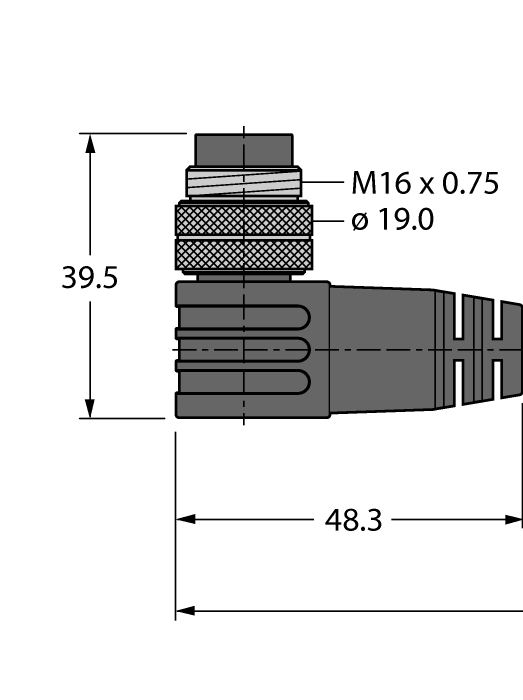

Order number: 6935132- M16 connector, male, angled, 19-pin
- Sheath material: TPU
- Sheath color: black
- Flame-retardant (FT1)
- Approval: UL and CSA
- RoHS-compliant
- Protection class IP67
- Cable length: 2.0 m
General data
| EAN | 4047101382273 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | US |
| Weight | 233 g |
Technical Data
| Number of Conductors | 2 |
| Core cross-section | 0.52 mm² |
| Cable diameter | Ø 7.9 mm |
| Cable length | 2.0 m |
| Cable jacket | TPU, Black |
| Shielding | no |
