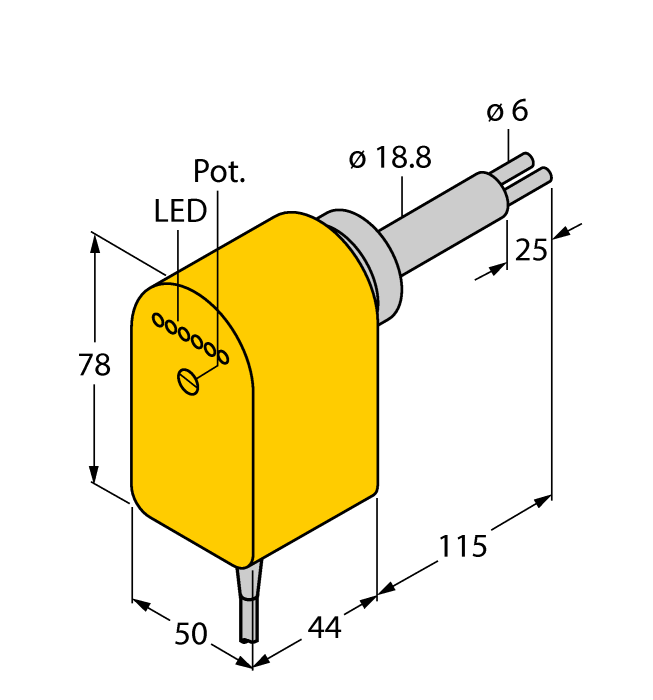

Product FCS-HA2P-LIX/AL115
Flow Monitoring
Immersion Sensor with Integrated Processor
Order number: 6870722- Sensor for gaseous media
- Calorimetric principle
- Adjustments via potentiometer
- Sensor length 115 mm
- DC 3-wire, 19.2…28.8 VDC
- 4…20 mA analog output
General data
| EAN | 4047101175233 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90268020000 |
| Country of origin | DE |
| Weight | 655 g |
Technical Data
| Application area | Standard |
Mounting accessories
|

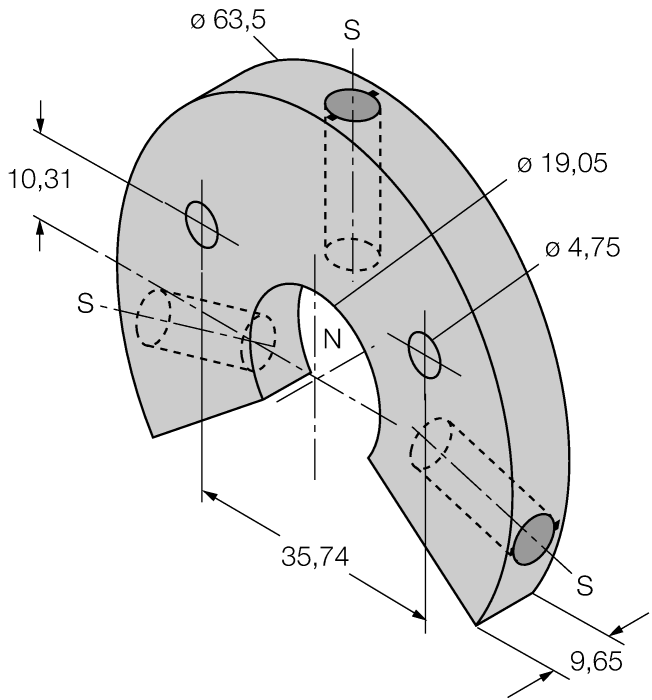

LSPM-AL-R10
Ring-type positioning element with slot, can be used for external mounting with mounting bracket RB-R10, material: Aluminum |
6900414 |
Functional accessories
|
PKG3M-0.3-PSG3M/TEY | 6630113 |
Connectivity accessories — Network
|
BI3-M08-VN6X-V1141
Cylindrical; Threaded Barrel; 8 mm; Chrome-plated Brass |
4602827 |
