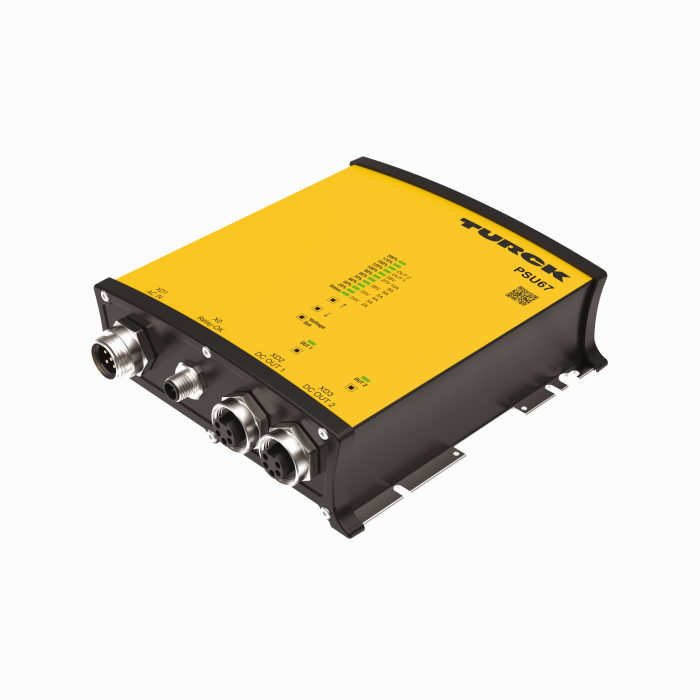

Product PSU67-3P-1MP-2M5-24200-F
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
3-Phase, 2 × 10 A Output Current
Order number: 100025679- Broad temperature range
- Status LED
- High efficiency, > 95 %
- 3-phase AC input, 7/8" multi-coded
- Current-limited outputs, 2 × 7/8", 5-pin
- Protection by eFuse (V1 + V2 bridged)
- Relay contact for checking the DC status
- LED interface and control knobs for maximum flexibility
General data
| EAN | 4047101535655 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | CZ |
| Weight | 1677 g |
Technical Data

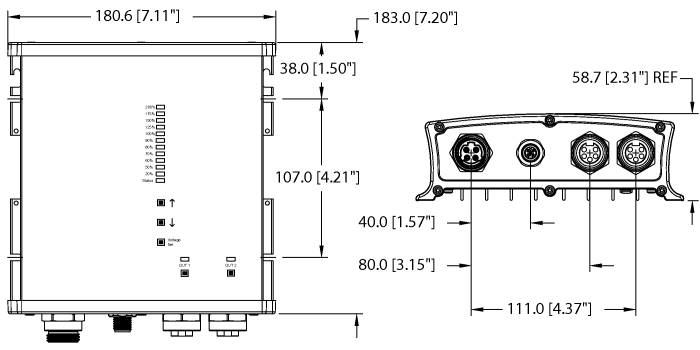

| Construction size | 183 x 180.6 mm |
| Protection class | IP67 |
