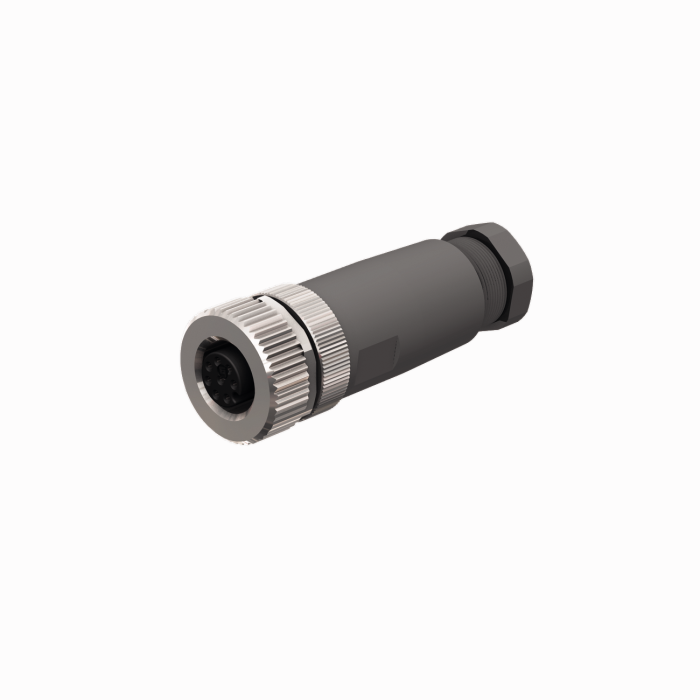

Product B8181-0
Field-Wireable Connector

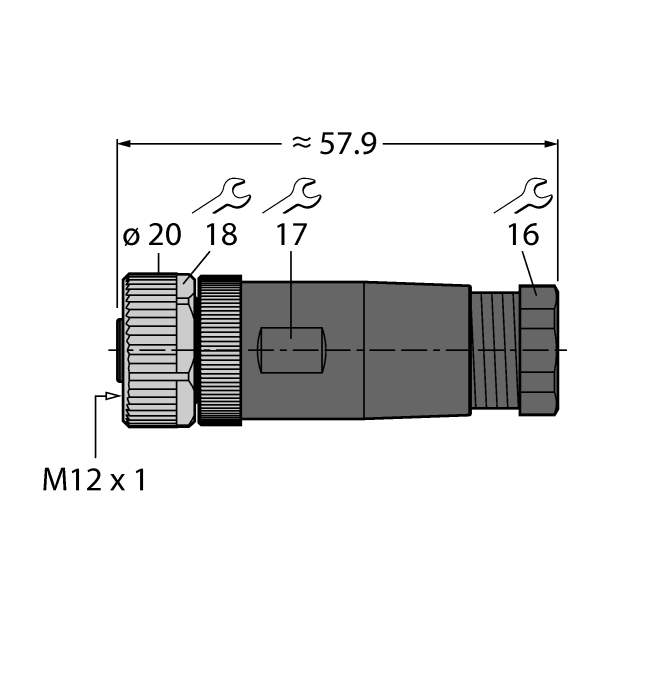

Female Connector M12 × 1, Straight
Order number: 6904605- A-coding
- Metal coupling nut
- Screw-clamp terminal
- 8-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101458428 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 28 g |
Data Sheets
| German | 245 KB |
| English | 245 KB |
| French | 246 KB |
| Spanish | 245 KB |
| Czech | 245 KB |
| Dutch | 245 KB |
| Romanian | 245 KB |
| Russian | 254 KB |
| Polish | 246 KB |
| Chinese | 299 KB |
| Turkish | 246 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
