Product TB-4M12-5P3-CS19T

Zoom
Zoom

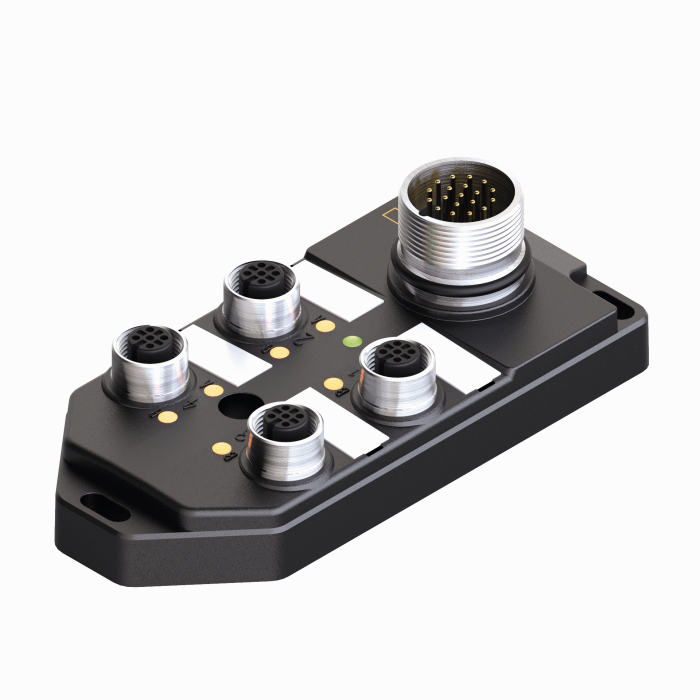

Passive Actuator/Sensor Box, M12 × 1

4-port, with M23 Connector for Supply Cable

Order number: 6611903

Housing material: Nylon
Housing color: black
Protection class IP67
RoHS-compliant
CE compliant

LED (PNP circuit)

I/O port (number of pins): 4-pin + PE

Hide All Open All

Specifications
Download
Accessories

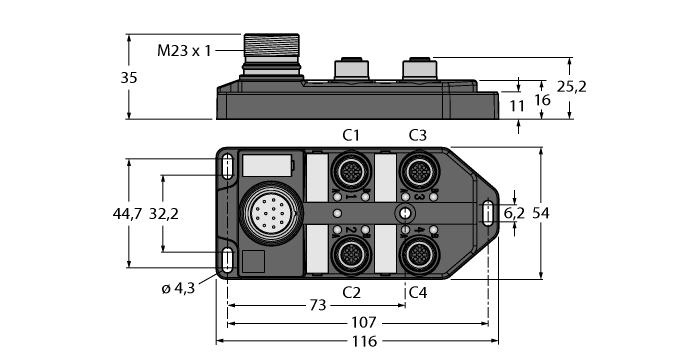

CAD

General data

EAN	4047101275681
eCl@ss-Code (V5.1.4):	27250316 -/- Passive sensor/actuator junction
Customs tariff number	85366990990
Country of origin	US
Weight	221 g

Technical Data

Protection class	IP67

Data Sheets

German	1180 KB
English	1180 KB
French	1181 KB
Spanish	1181 KB
Czech	1181 KB
Dutch	1181 KB
Romanian	1181 KB
Russian	1601 KB
Polish	1182 KB
Chinese	1261 KB
Turkish	1181 KB

Approval/Declaration

UL Approval	249 KB
CE Declaration of Conformity	56 KB

General Catalog

Connectivity	11874 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	TXF-MT-05 Multi-Purpose Bracket with Cable Gland for TXF705, 707 and 710	100022475
	REI-12H15T-4B1000-H1181	100010440
	ABR3106-WSE1	3804437
	S22AMTFBGHQP	3813386
	QS186LE212Q	3075967
	BRO.P.LEVEL-LS_5.KO	100044238
	RKC4.4T-20/TXG	6630745
	PKGS4M-5-PSGS4M/TEL	6627451
	PKW4M-1-RSC4.4T/TEL	6630519
