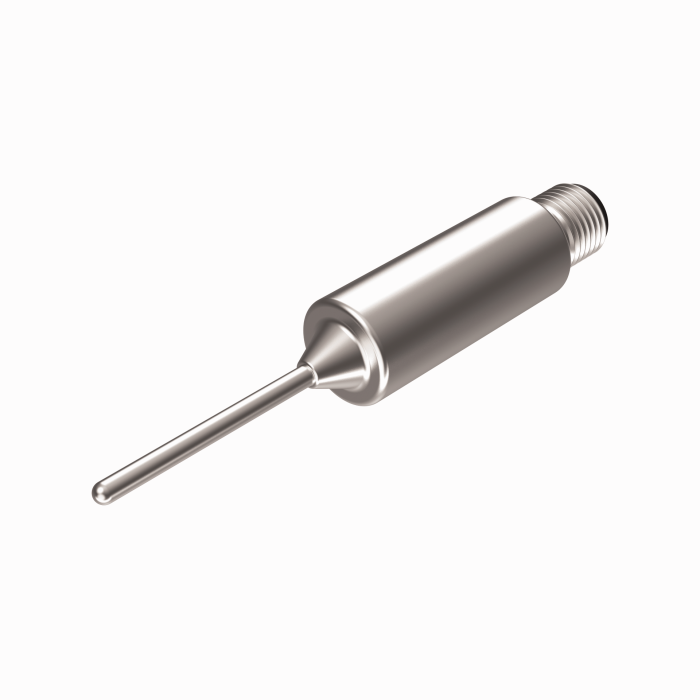

Product TTMS-203A-CF-LIUPN-H1140-L150
Temperature Detection
With Current Output and PNP/NPN Transistor Switching Output
Order number: 9910658- Miniature design
- Parameterizable via IO-Link
- Analog output 4…20 mA (2-wire)
- Switching output
- Compression fitting process connection

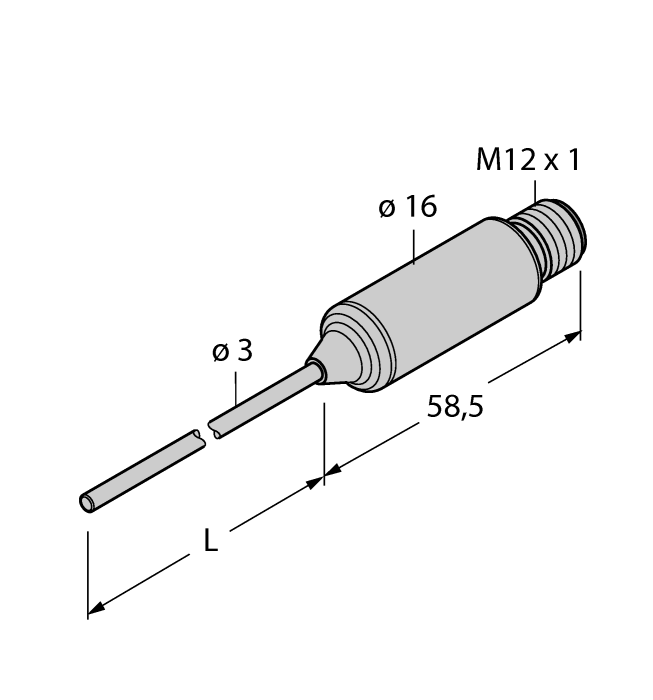

- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
General data
| EAN | 4047101306286 |
| eCl@ss-Code (V5.1.4): | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 90251900900 |
| Country of origin | IT |
| Weight | 40 g |
Technical Data
| Design | Without display (integrated probe) |
| Mounting conditions | Immersion sensor |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+80 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
