Product QS18UNAEQ8
Ultrasonic Sensor
diffuse mode sensor
With Switching Output
Order number: 3073161Alternative order number : 73161
- Operating voltage 12…30 VDC
- Compact design
- Male, M12 x 1
- Switching range adjustable via teach-connection
- Adjustable to retroreflective mode
- Blind zone: 5 cm
- Range: 50 cm
General data
| EAN | 662488731618 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 66 g |
Technical Data

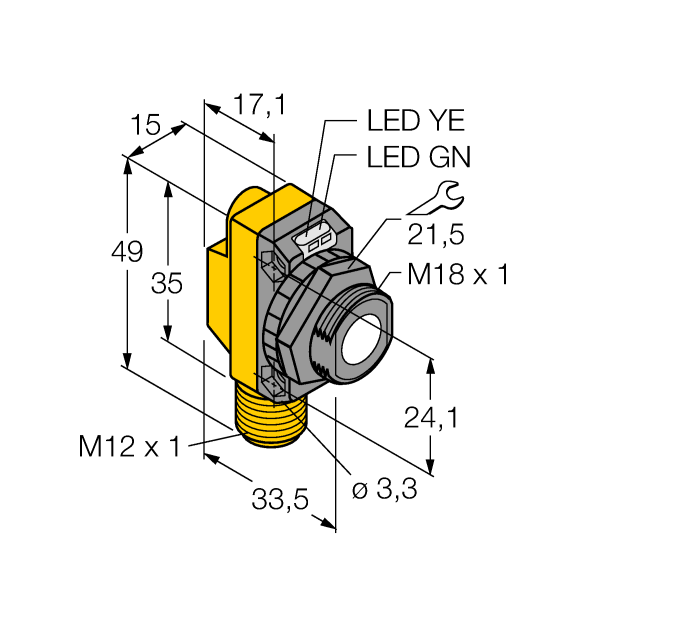

| Construction size | 33.5 x 15 x 35 mm |
| Operating voltage | 12…30 VDC |
| Output function | NO contact, NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+60 °C |
| Protection class | IP68 |
