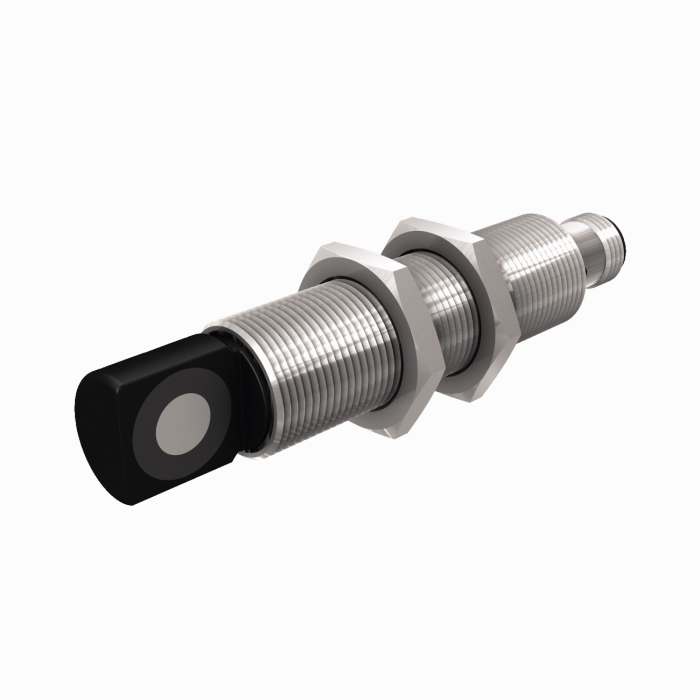

Product RU40U-M18ES-LI8X2-H1151
Ultrasonic Sensor
Diffuse Mode Sensor
Order number: 1610097- Rectangular transducer front
- Cylindrical housing M18, potted
- Connection via M12 x 1 male
- Teach range adjustable via adapter
- Temperature compensation
- Blind zone: 2.5 cm
- Range: 40 cm
- Resolution: 0.5 mm
- Aperture angle of sonic cone: ±15 °
- Analog output, 4…20 mA, additional switching output, PNP
General data
| EAN | 4047101430356 |
| eCl@ss-Code (V5.1.4): | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 74 g |
Technical Data

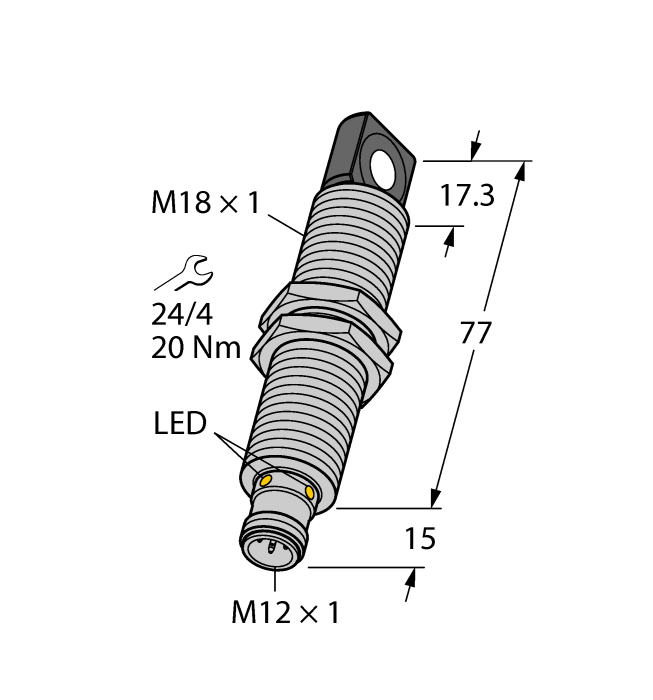

| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
Mounting accessories
|

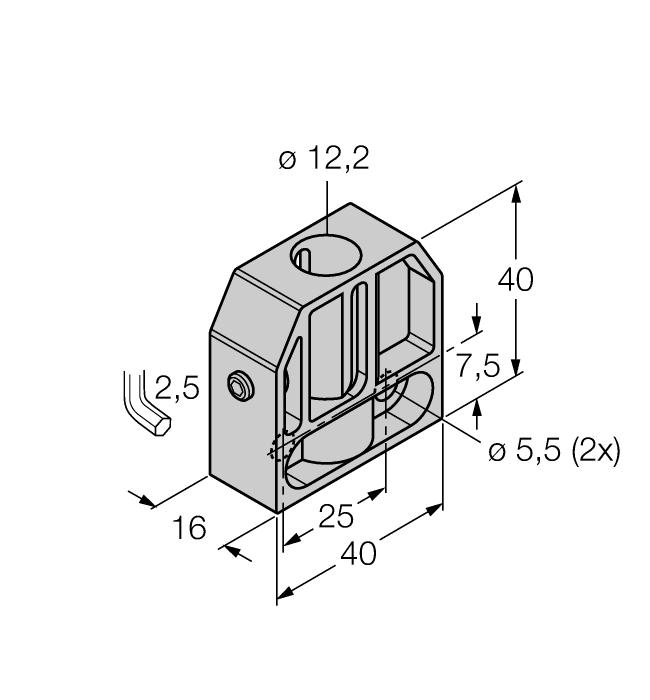

BS 12
Mounting clamp for threaded barrel sensors; material: PBT-GF20 |
69470 |
Connectivity accessories
|
T18AW3FF25Q1 | 3058393 |
