Product Q7MEB
Magnetic Field Sensor
With Switching Output
Order number: 3081909Alternative order number : 81909
- Compact, robust design in a flat aluminum housing
- Protection classes IP67/IP69K
- Cable connection
- Operating voltage 10…30 VDC
- Switching outputs, bipolar (PNP/NPN)
- Measuring range adjustable via teach-in
General data
| EAN | 662488819095 |
| eCl@ss-Code (V5.1.4): | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 103 g |
Technical Data
| Design | Rectangular |
| Operating voltage | 10…30 VDC |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Aluminium, AL |
| Ambient temperature | -40…+70 °C |
| Protection class | IP68/IP69K |
Mounting accessories
|

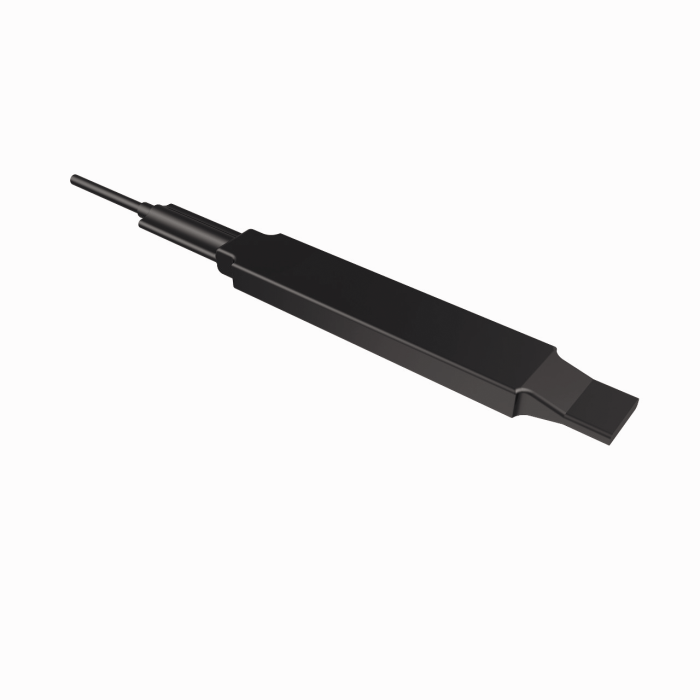

DT06-3SG-A-10/TXL | 100000423 |
