Product QS18VN6FQ8
Photoelectric Sensor
Photoelectric Sensor for Glass Fibers
Order number: 3071782Alternative order number : 71782
- M12 × 1 male, 4-pin
- Protection class IP67
- LED all-round visible
- Sensitivity adjusted via potentiometer
- Operating voltage: 10…30 VDC
- NPN switching output, changeover
General data
| EAN | 662488717827 |
| eCl@ss-Code (V5.1.4): | 27270905 -/- Fiber optic sensor |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 45 g |
Technical Data
| Design | Rectangular with thread |

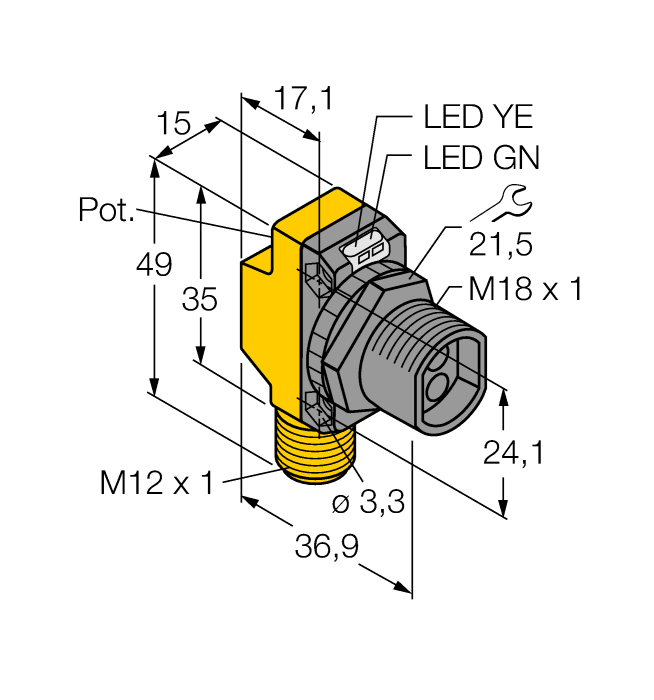

| Construction size | 36.9 x 15 x 49 mm, QS18 |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
| Special features | Wash down |
