Product BI1.5-EG08-LU
Inductive Sensor
With Analog Output
Order number: 1533003- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- 3‐wire, 15…30 VDC
- Analog output
- 0…10 V
- Cable connection
General data
| EAN | 4047101145830 |
| eCl@ss-Code (V5.1.4): | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 85365019000 |
| Country of origin | PL |
| Weight | 59 g |
Technical Data

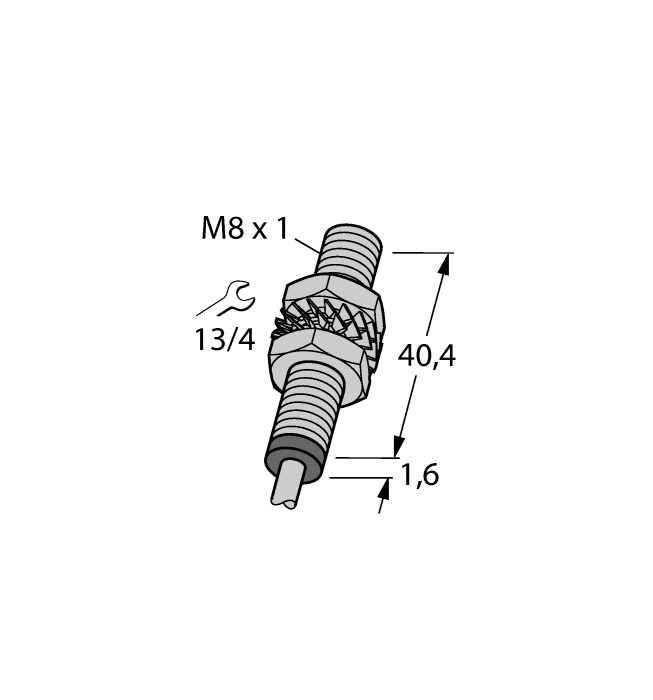

| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Measuring range | 0.25…1.25 mm |
| Mounting conditions | Flush |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
