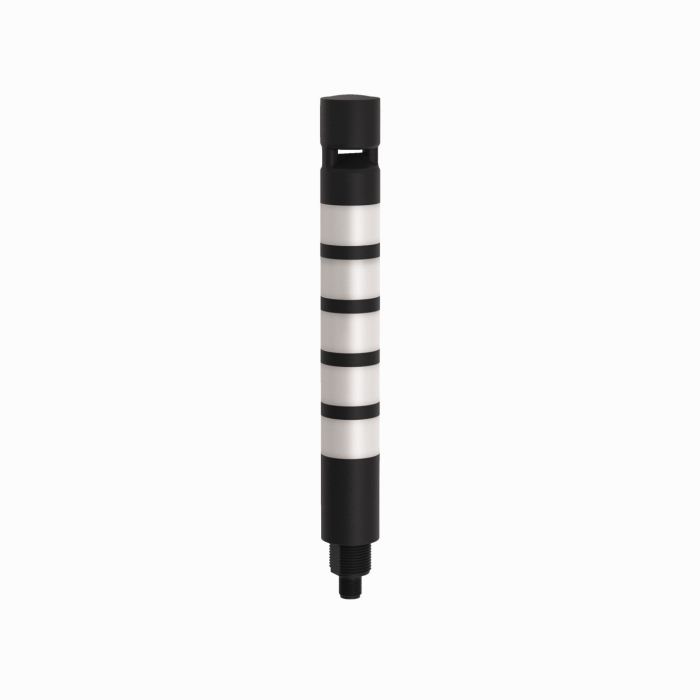

Product TL30BWBGYRAXQD
LED Signal Light
Tower Light
Order number: 3805418Alternative order number : 805418
- Compact plastic housing, black
- Protection class IP65

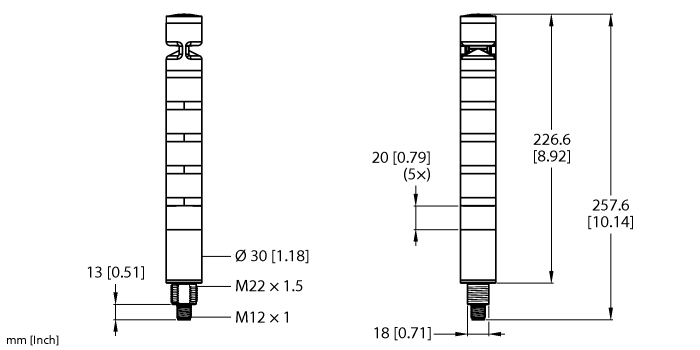

- Mechanical screw-in thread, M22 × 1.5
- M12 × 1 male connector
- Colors: White (COL 1), Blue (COL 2), Green (COL 3), Yellow (COL 4), Red (COL 5)
- Operating voltage: 12…30 VDC
- PNP or NPN input circuit, 8-pin, depending on wiring
- Beeper: Omnidirectional, sealed, continuous tone max. 99 dB
General data
| EAN | 662488040734 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 184 g |
Technical Data
| Design | Smooth barrel |
| Operating voltage | 12…30 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP65 |
Mounting accessories
|
BI1.5-EG08-AP6X
Cylindrical, threaded barrel, 8 mm, stainless steel |
4602240 |
|
AIH401-N | 6884269 |
