Product FW-ERSSM0414-PL-P-0611
Field-Wireable Connector
M12 Power

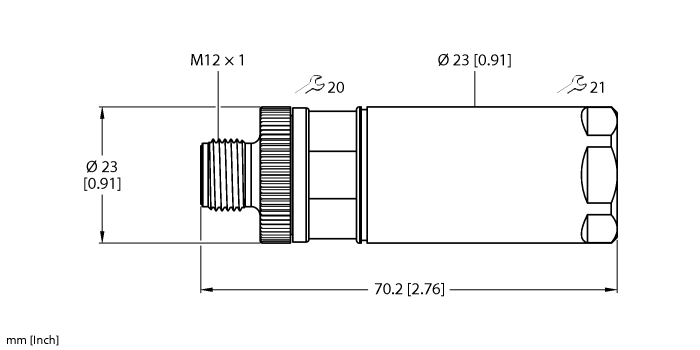

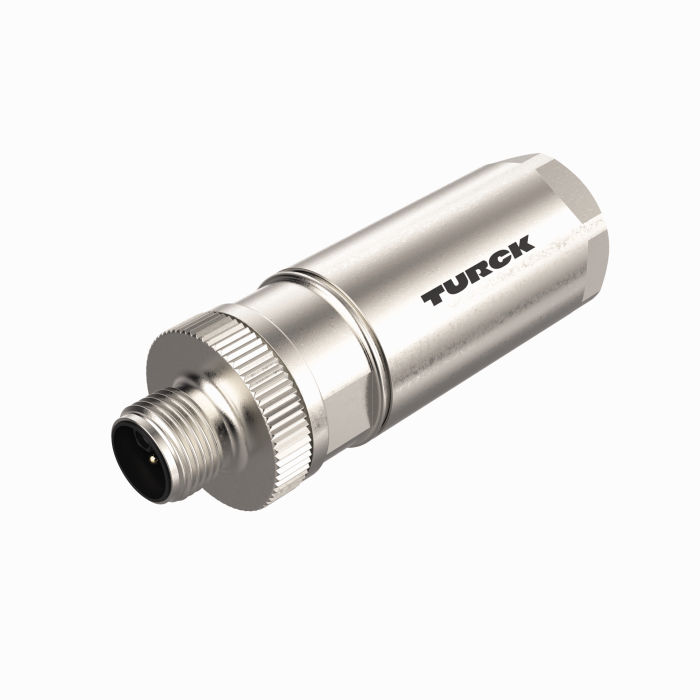

Male Connector M12 × 1, Straight
Order number: 100045548- L-coding
- Metal retaining screw
- Push-in connection
- 4-pin
- Cable feedthrough: 6.0…11.0 mm
- Shieldable
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (without cable end sleeve)
- Max. 2.5 mm² or 14 AWG (without cable end sleeve)
General data
| EAN | 4047101626421 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 90 g |
Mounting accessories
|
VAS22-S80E-0.4-DAS22-S-FS5.432/TXL | 6606633 |
|
FSFD54PL-0.5/M16 | 100028355 |
Connectivity accessories
|
LE550DC1 W/30 | 3095384 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
|
RSC4.4T-15/TXG | 6634164 |
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
FAS4-CSG43 | 6821322 |
|
PT300PSIG-2014-U1-DA91/X | 6837037 |
|
SLPCR25-690P8 | 3083623 |
|
TM18VP6FF25Q8 | 3042038 |
|
SLLCR14-1820P8 | 3089159 |
