Product PKG4S-1.9-PKG4S/TXL
Actuator and Sensor Cable, PUR
Extension Cable

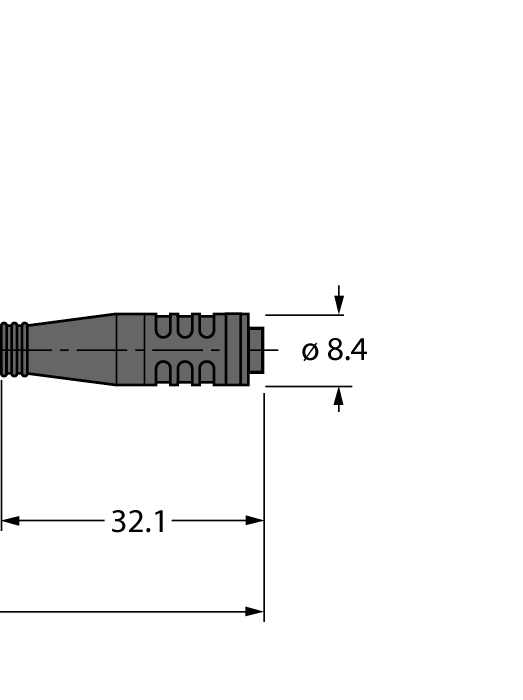

Order number: 6631588- Female Ø 8 mm, straight, 4-pin, snap-on type
- Female Ø 8 mm, straight, 4-pin, snap-on type
- Sheath material: PUR
- Sheath color: black
- Qualified for drag chain use
- Resistant to weld splatter
- Resistant to chemicals, UV radiation and oils
- Flame retardant
- Free from halogen, silicone, PVC and LABS
- Particularly resistant to abrasion
- RoHS conform
- Protection class IP67
- Cable length: 1.9 m
General data
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
Technical Data
| Cable length | 1.90 m |
| Ambient temperature | -25…+80 °C |
