Product BCC10-S30WD-AP4X-H1141
Capacitive Sensor
For the Detection of Dry Pellets

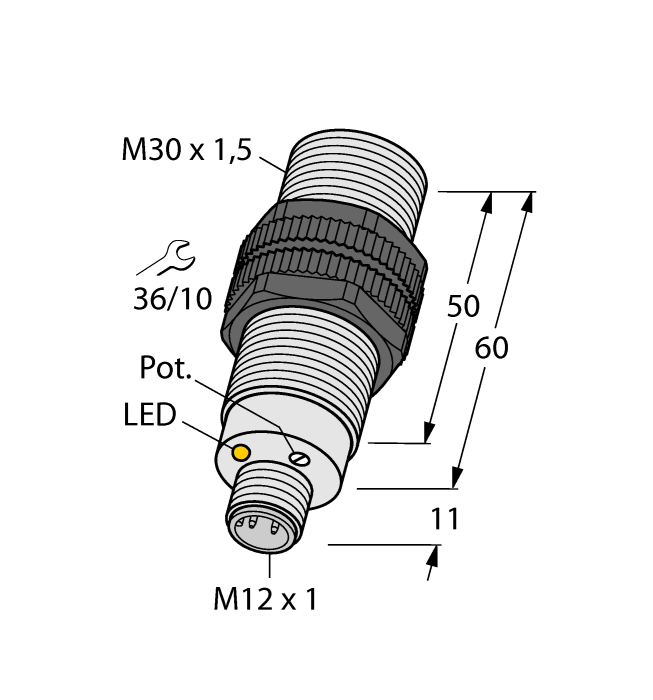

Order number: 2503052- M30 × 1.5 threaded barrel
- LCP
- Fine adjustment via potentiometer
- Especially for dry pellets and the plastics industry
- EMC and ESD resistant
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- M12 × 1 connector
General data
| EAN | 4047101265965 |
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 84 g |
Technical Data
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Output function | NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, LCP |
| Ambient temperature | -25…+100 °C |
| Protection class | IP69K front, IP67 rear |
| Approvals | UL |
| Special features | EMC and ESD resistant, Especially for the detection of dry pellets, Wash down |
