Product PT600R-2049-I2-WM0.5/X
Pressure Transmitter
With Current Output (2-Wire)
Order number: 100001180- Fully welded metal measuring cell
- Pressure range 0…600 bar rel.
- Pressure peak orifice
- 7…33 VDC
- Analog output 4…20 mA

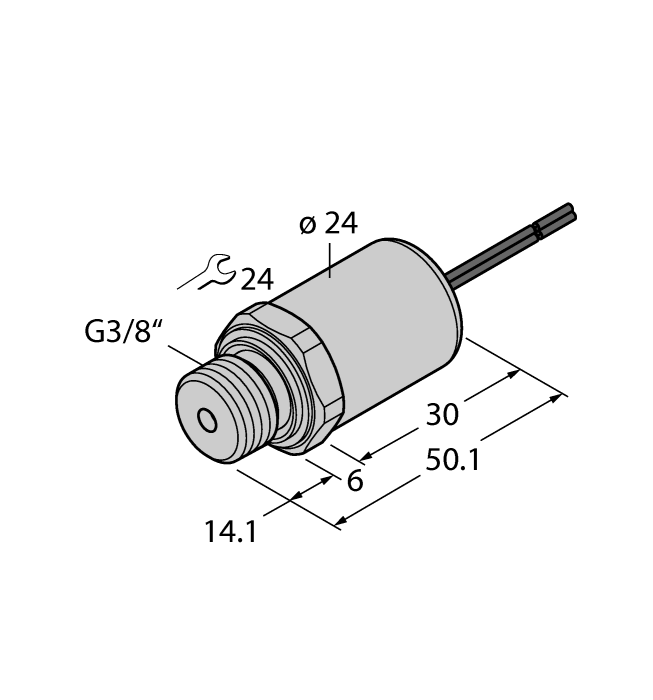

- Process connection G3/8" male thread
- Cable device, open-ended braid
General data
| EAN | 4047101449051 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | CH |
| Weight | 1 g |
Technical Data
| Output function | Analog output current |
| Electrical connection | Stranded wires, Open end |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Ambient temperature | -30…+85 °C |
| Protection class | IP65 |
| Approvals | CE, Metrological certification (RUS), cULus |
Mounting accessories
|
INS.P.IO_SYSTEM-EXCOM_PSM24_N_1.32 | 100032386 |
|
FS46PS-2/M16 | U2-29262 |
