Product WKCV4.4T-P7X2-25/TEL

Actuator and Sensor Cable, PVC

Connection Cable

Order number: 6626218

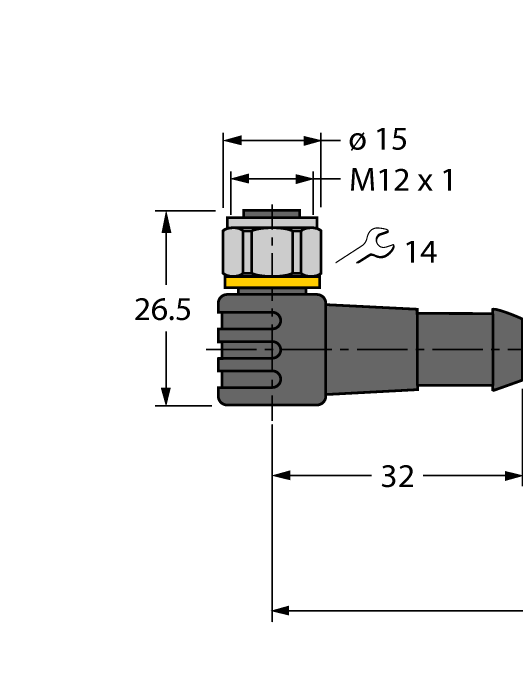

Female M12, angled, 4-pin
With 2-color LED (PNP, yellow, green)
Stainless steel coupling nut/screw

Jacket material: PVC
Jacket color: black
Resistant to chemicals and oils
Flame retardant
Resistant to acids and alkaline solutions
Resistant to microbes and hydrolysis
LABS free
Protection class: IP67, IP69K

Cable length: 25 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101288773
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	CN
Weight	941 g

Technical Data

Cable length	25.0 m
Ambient temperature	-5…+80 °C

Data Sheets

German	543 KB
English	543 KB
French	545 KB
Spanish	542 KB
Czech	543 KB
Dutch	543 KB
Romanian	544 KB
Russian	549 KB
Polish	544 KB
Turkish	544 KB

Approval/Declaration

UL Approval	335 KB
CE Declaration of Conformity	654 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	INS.P.IO_SYSTEM-EXCOM_PSM24_N_1.32	100032386
	PS016V-511-2UPN8X-H1141	6832935
	FS46PS-2/M16	U2-29262
	TL50GYRAQP	3083231

Functional accessories

	RKC4.5T-12.5/TXO3700	6632937
